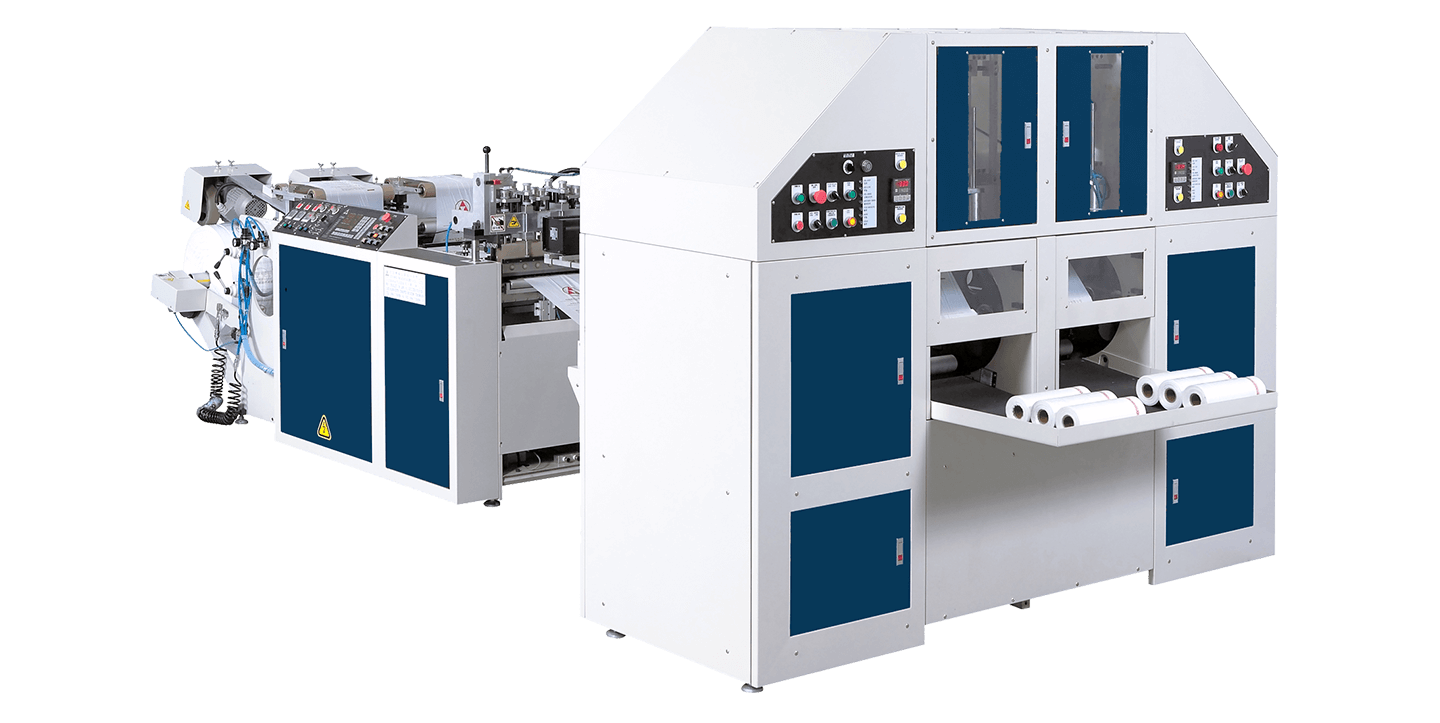

Fully Automatic High Speed 2 Lines with Core Vegetable Bag on Roll Making Machine
SCR-40 / SCR-50
Features
- Computer control over the entire process
- Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
- Automatic film feeding, coordination free from tension adjustment
- Automatically stop when running out of film
- Automatically stop when film feeding blocks or bags jam
- Automatically stop when color scanning misses
- High production efficiency to save manpower and time
- Antomcatically core changing
Specifications
| MODEL | SCR-40 |
|---|---|
| Bag Length | 150 ~ 750 mm |
| Bag Width | 100 ~ 350 mm |
| Film Thickness | 0.008 ~ 0.035 mm |
| Production Speed | 100 meters / min / line |
| Finished Roll Size | Ø 180 x 350 mm (max) |
| Upload Film Roll Size | Ø 900 x 350 mm (max) |
| Core Size | Ø 25~75mm , thickness 3 mm (min) |
| Power | 220V, 3Phases, 50/60HZ, 18KVA |
| Heater | 3.5 KW |
| Dimension L x W x H | 6280 x 2400 x 1920 mm |
| Packing L x W x H |
Machine : 2880 x 1610 x 1510 mm Rewinder : 2260 x 2580 x 1880 mm |
| Required Air Compressor | 5HP (not included) |
| Weight | 4000kg (net) / 4200kg (gross) |
* The specification are subject to be changed for improvement without notice.
