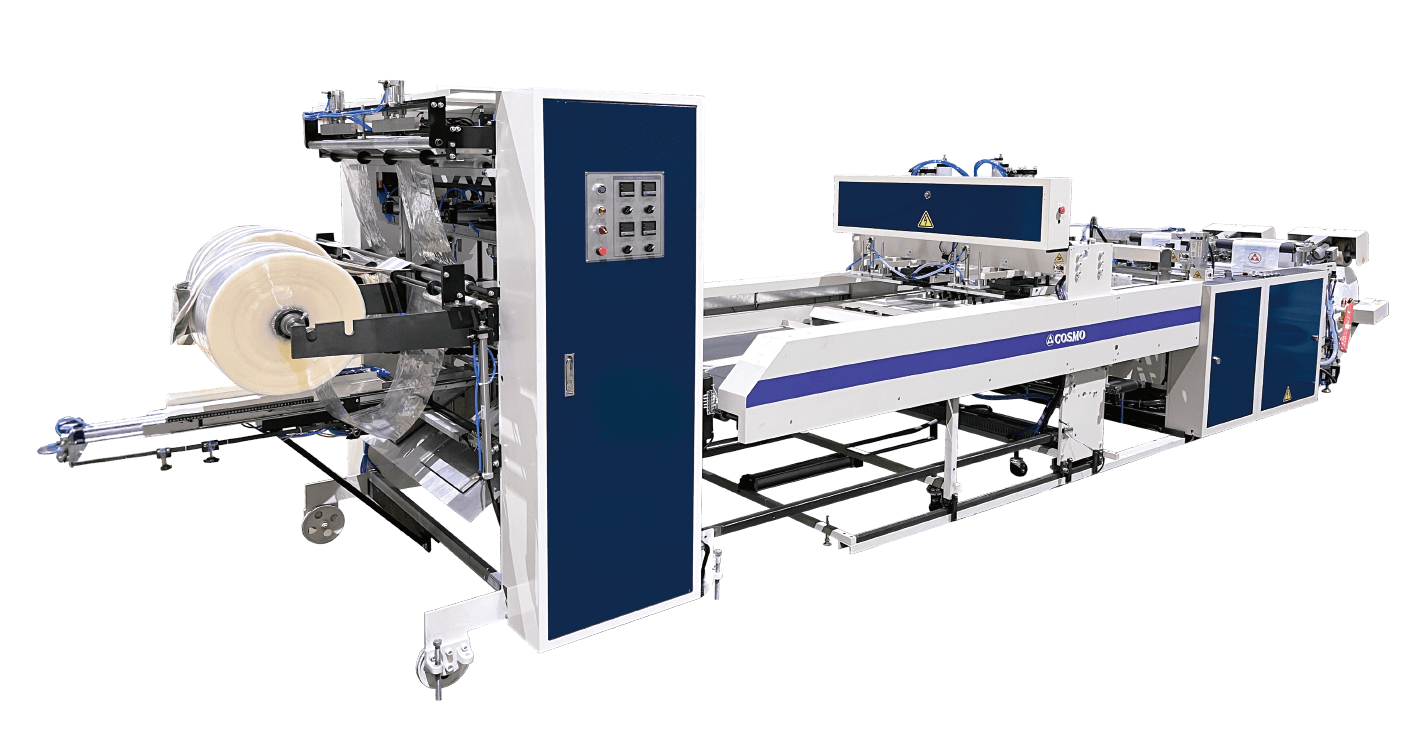

Fully Automatic High Speed 2 Lines T-Shirt Bags Making Machine with Auto Packaging Unit

ST-88+SVAP(2) / ST-88-500+SVAP(2)

2 lines T-shirt bag making machine
High production efficiency to save manpower and time
From film roll to final bag, one process flow
It's easy to adjust the bag length, production speed, stacks on the interface
Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment
Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
With auto packaging unit

MODEL	ST-88-500+SVAP(2)
Bag Size	Length: 350 - 650 mm Width: 160 - 365 mm Thickness: 0.008 - 0.05 mm
Production Speed	180 - 250 pcs / min/ line
Upload Film Roll Size	Ø 900 x 465mm
Power	220V , 3 Phases , 50/60HZ , 15KVA
Heater	4.5 KW
Dimension L x W x H	6750 x 1550 x 1750 mm
Required Air Compressor	10HP (not included)

* 規格如有變更改進，恕不另行通知。
