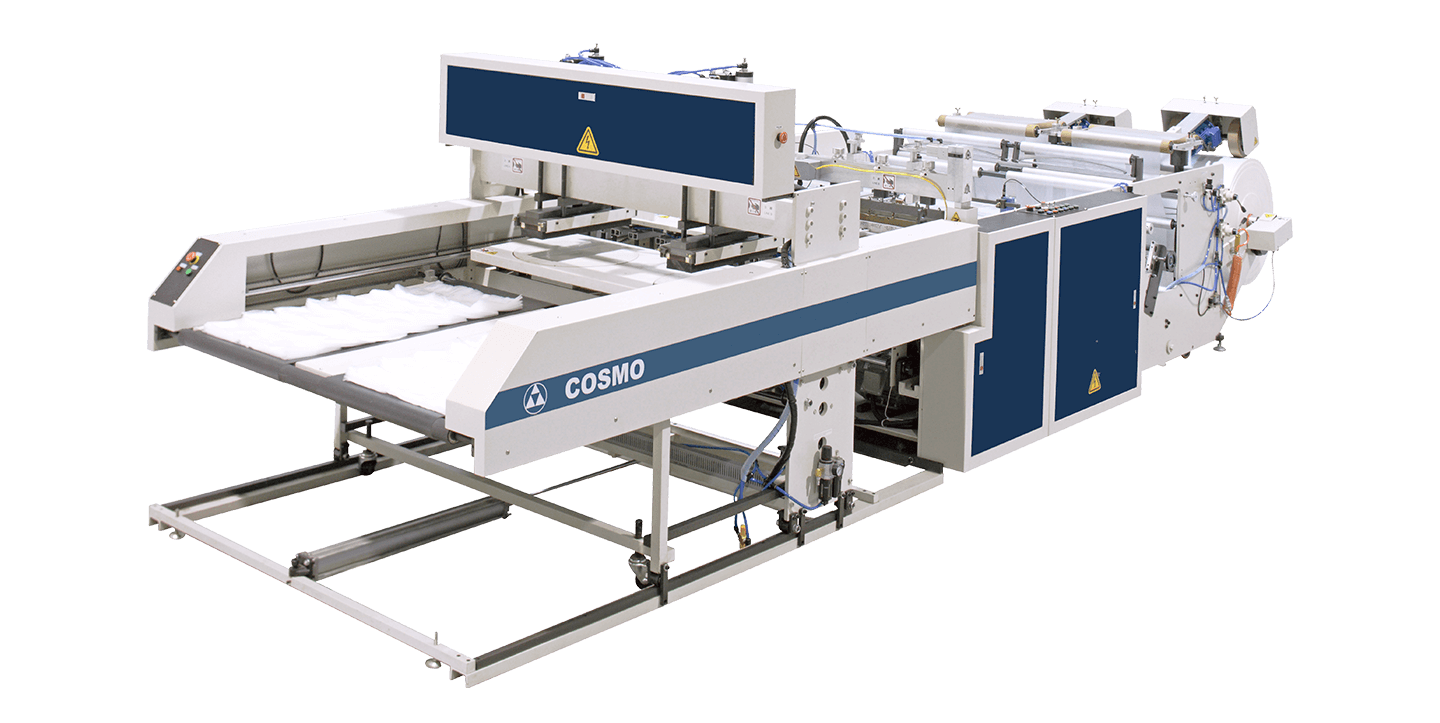

全自動高速雙線馬鞍袋製袋機

SSD-600 / SSD-1000

產品特色



  • High production efficiency to save manpower and time
  • Computer control over the entire process
  • From film roll to final bag, one process flow
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Automatically stop when running out of film/ color scanning misses
  • Automatic film feeding, coordination free from tension adjustment
  • Single output and 2 lines output punching unit


產品規格



型號 SSD-600
產品尺寸

Length: 150 ~ 300 mm

Width: max 550 mm

Thickness : 0.008 ~ 0.035 mm

生產速度 max 250 strokes / min / line
料捲尺寸 Ø 900 x 550mm

電力

220V , 3 Phases , 50/60HZ , 15KVA
電熱 5.1 KW
機器尺寸 長 x 寬 x 高 6050 x 1870 x 1630 mm
空壓機 6 HP (not included)


* 規格如有變更改進,恕不另行通知。
