全自動 8 線背心袋 & 底封袋製袋機

SCB-800-L8 / SCB-1100-L8

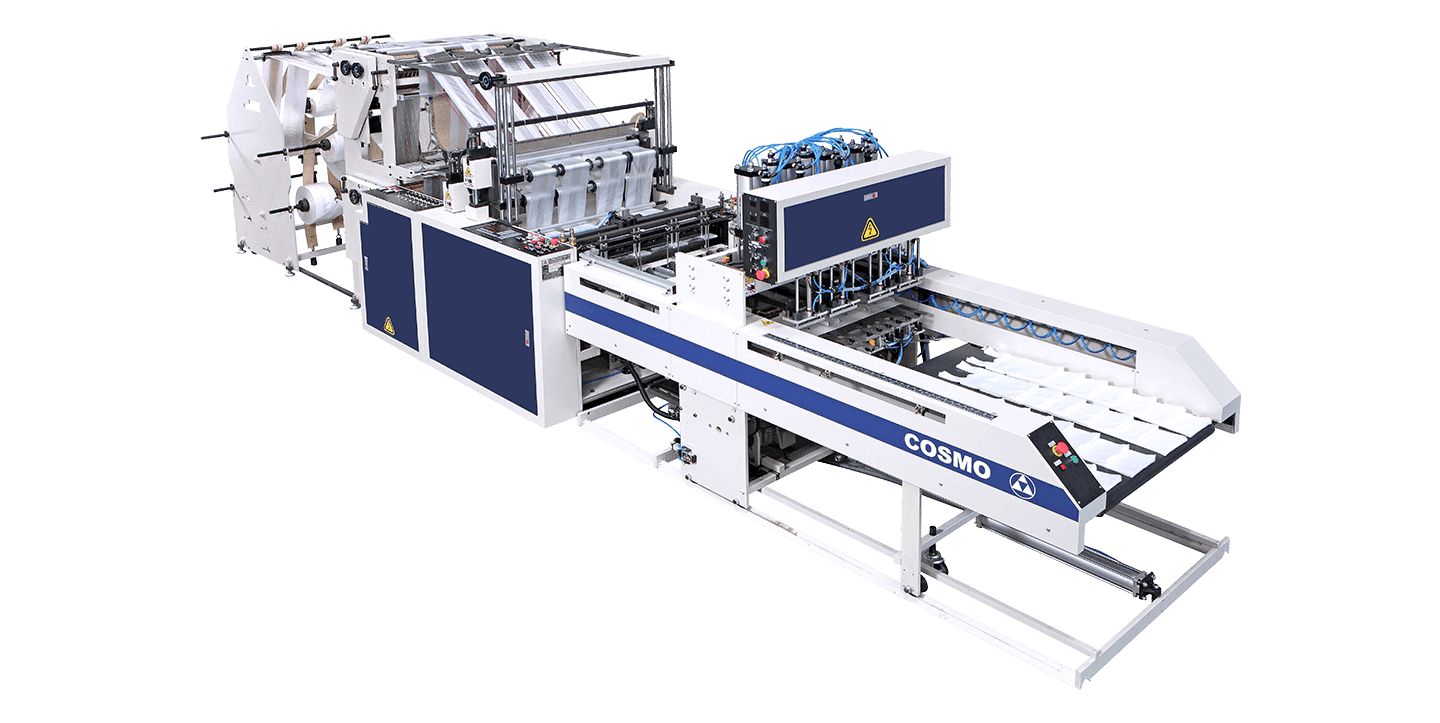

SCB-800-L8

產品特色



  • Computer control over the entire process
  • From film roll to final bag, one process flow
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of film
  • Automatically stop when film feeding blocks or bags jam
  • Automatically stop when color scanning misses
  • High production efficiency to save manpower and time


產品規格



型號 SCB-800-L8 SCB-1100-L8
袋長 200 - 650 mm 200 - 650 mm
袋寬 100 - 150 mm 100 - 230 mm
袋厚 0.008 - 0.035 mm 0.008 - 0.035 mm
生產速度 60 - 120 張數 / 分鐘 / 線 60 - 120 張數 / 分鐘 / 線
料捲尺寸 Ø 750 x 150 mm Ø 750 x 230 mm
電力 220V, 3Phases, 50/60HZ, 10KVA 220V, 3Phases, 50/60HZ, 10KVA
電熱 5.2 KW 6 KW
機器尺寸 L x W x H 6550 x 1460 x 1840 mm 6550 x 1760 x 1840 mm
包裝尺寸 L x W x H 料架:1090 x 1370 x 1800 mm
主機:2250 x 1680 x 1890 mm
沖台:2670 x 1370 x 1590 mm
料架:1090 x 1670 x 1800 mm
主機:2250 x 1910 x 1890 mm
沖台:2670 x 1760 x 1590 mm
空壓機 5HP (不包含) 5HP (不包含)
重量 2500kg (淨重) / 2900kg (毛重) 3800kg (淨重) / 4100kg (毛重)


* 規格如有變更改進,恕不另行通知。
