T-Shirt Bags Making Machine // In-Line Connecting System

SA-20+IN

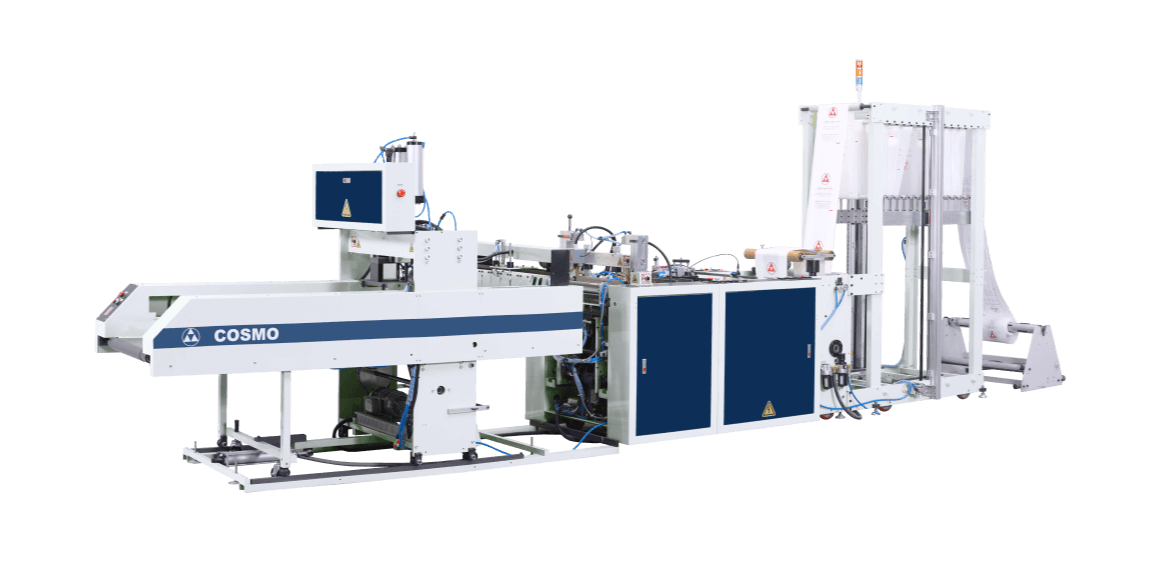

Fully Automatic High Speed Single Line T-Shirt Bag Making Machine with In-Line Connecting System

Features



  • Single line T-shirt bag making machine
  • High production efficiency to save manpower and time
  • From film roll to final bag, one process flow
  • It's easy to adjust the bag length, production speed, stacks on the interface
  • Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
  • Automatic error detection system
  • In-line connecting system


Specifications



MODEL SA-20+IN
Bag Size

Length: 350 - 650 mm

Width: 120 - 465 mm

Thickness: 0.008 - 0.035 mm

Production Speed 130 - 250 pcs / min
Upload Film Roll Size Ø 900 x 465 mm
Power 220V , 3 Phases , 50/60HZ , 12KVA
Heater 2.2 KW
Dimension L x W x H 5450 x 2250 x 1650 mm
Required Air Compressor 6HP (not included)




* The specification are subject to be changed for improvement without notice.
