Fully Automatic 4 Type High Speed Side Seal Bag Making Machine for Loop Handle Bag, Die Cut Handle Bag, Draw Tape Bag, Patch Handle Bag

SH-800-F4 / SH-1000-F4

Features



  • Side sealing bag making machine
  • Computer control over the entire process
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Component self-testing function available
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of film / film feeding blocks or bags jam
  • High production efficiency to save manpower and time
  • 4 type bags production

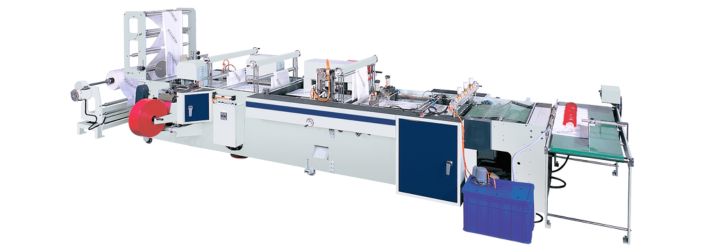

【COSMO】Side Sealing Bag Making Machine:SH-1000-F4



Specifications



MODEL SH-800-F4
Bag Length 250 - 650 mm (seal to seal)
Bag Width 250 - 650 mm (max)
Film Thickness / Layer 0.030 - 0.090 mm
Production Speed 40 - 80 / min
Upload Film Roll Dia Ø 700 x 700 mm
Top Gusset 70 - 75 mm
Bottom Gusset max 85 mm
Power 220V, 3Phases, 50/60HZ, 8.8KVA
Heater 2 KW
Dimension L x W x H 5240 x 1370 x 2090 mm
Required Air Compressor 10HP (not included)


* The specification are subject to be changed for improvement without notice.

Applications
