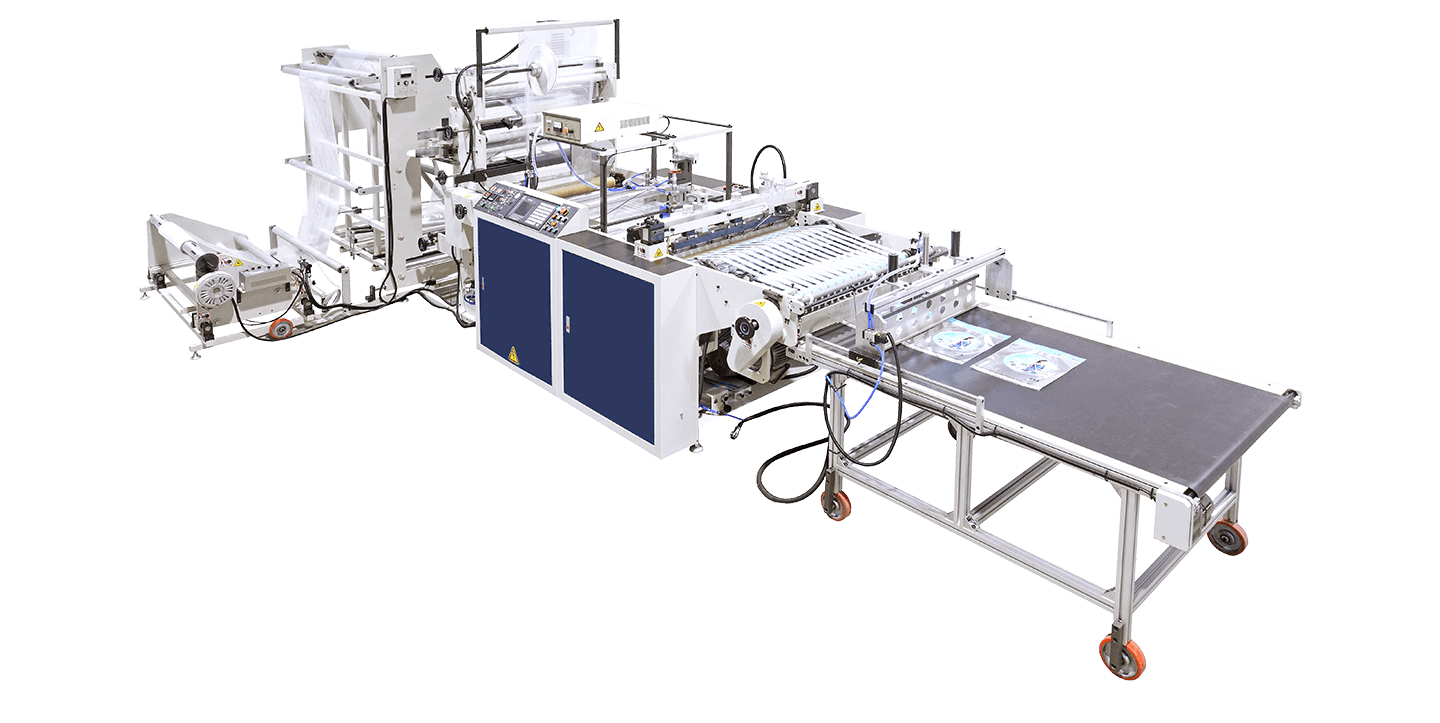

Fully Automatic Side Seal Bag Making Machine for LDPE, PP, OPP, BOPP & CPP Film

SH-32-FC

Fully Automatic Side Seal Bag Making Machine for LDPE, PP, OPP, BOPP & CPP Film

Features



  • Computer control over the entire process
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Component self-testing function available
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of film
  • Automatically stop when film feeding blocks or bags jam
  • High production efficiency to save manpower and time


    • Specifications



    MODEL SH-32-FC
    Bag Length 50 - 550 mm
    Bag Width 700 mm (max)
    Film Thickness 0.010 - 0.050 mm
    Production Speed 60 - 250 / min
    Upload Film Roll Dia Ø 750 mm x 700 mm
    Power 220V, 3Phases, 50/60HZ, 10KVA
    Heater 2 KW
    Dimension L x W x H 5240 x 1370 x 2090 mm
    Packing L x W x H 3150 x 1610 mm
    2610 x 1850 mm
    Required Air Compressor 5HP (not included)
    Weight 7000kg (net) / 7800kg (gross)


    * The specification are subject to be changed for improvement without notice.
