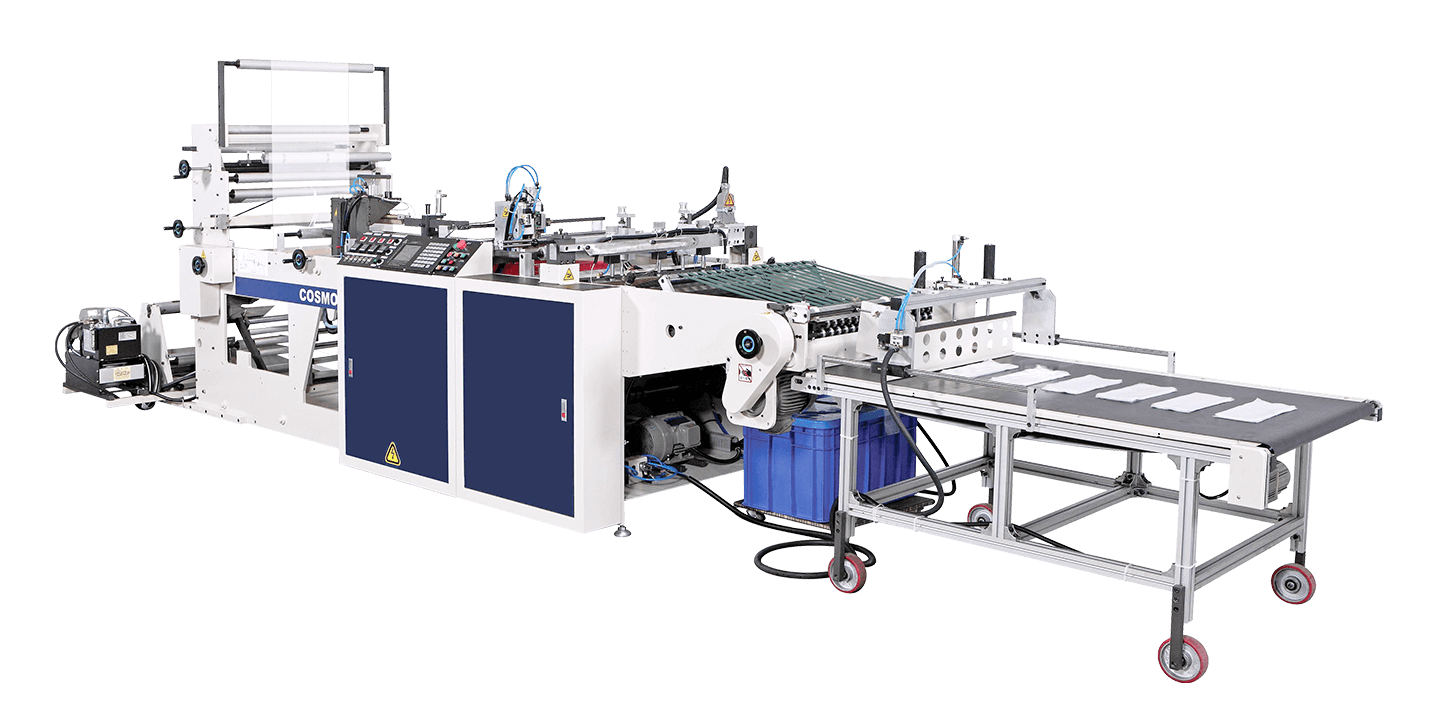

Side Sealing & Bottom Seal Bag Making Machine For LDPE , HDPE , PP, OPP, BOPP & CPP Film / SHTB-28
Specifications
| MODEL | SHTB-28 |
|---|---|
| Bag Length | 85 - 650 mm (seal to seal) |
| Bag Width | 250 - 650 mm |
| Film Thickness / Layer | 0.010 - 0.050 mm |
| Production Speed | 90 - 200 / min |
| Upload Film Roll Dia | Ø750 x 700 mm |
| Top Gusset | 70 - 75 mm |
| Bottom Gusset | max 85 mm |
| Power | 220V,3Phases,50/60HZ,20KVA |
| Heater | 10KW |
| Dimension L x W x H | 7140 x 1370 x 1960mm |
| Packing L x W x H | 5210 x 1760 x 2160mm |
| Required Air Compressor | 10HP (not included) |
| Weight | 2000kg (net) / 2200kg (gross) |
* The specification are subject to be changed for improvement without notice.
