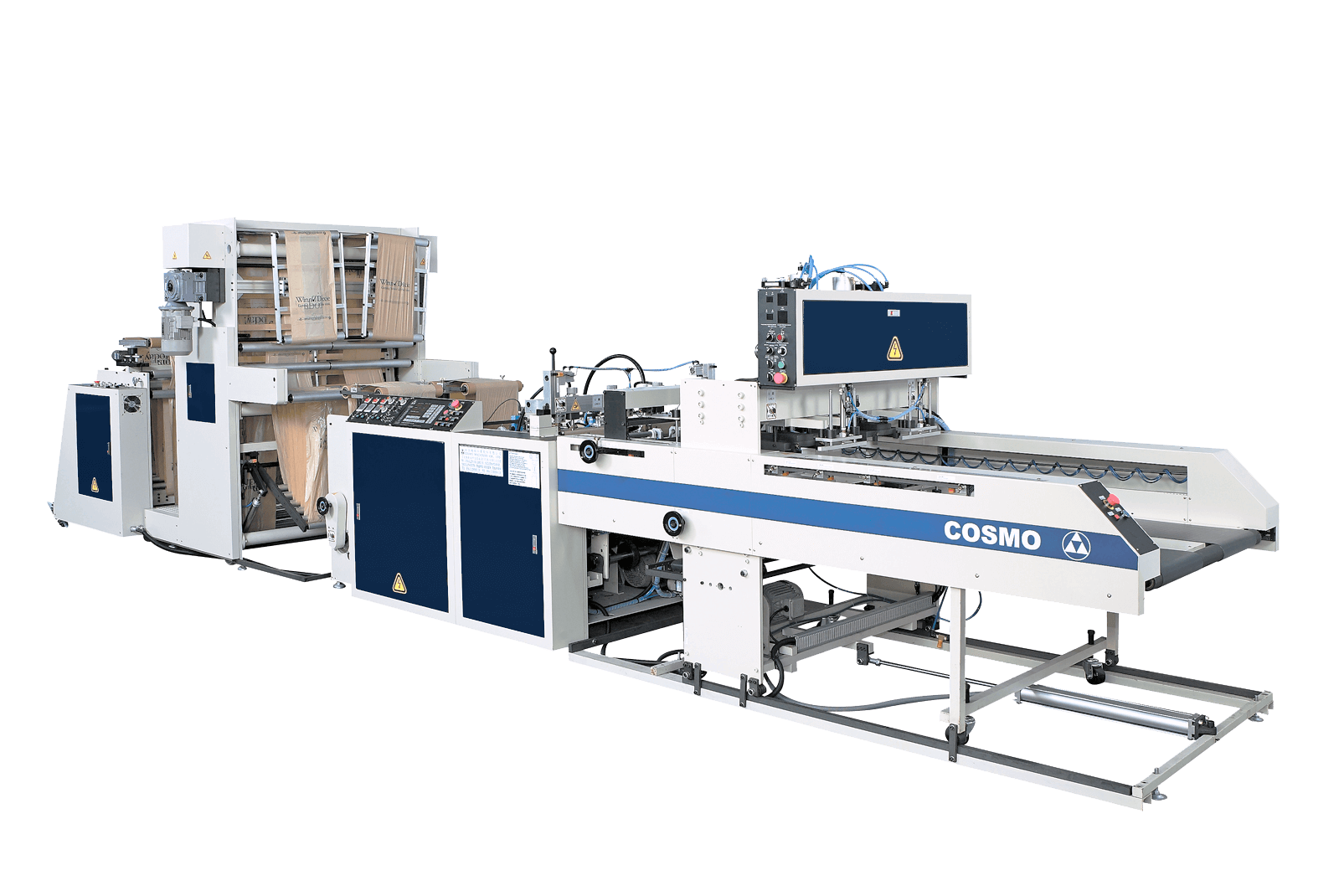

High Speed T-Shirt Bag Making Machine with Side Gusseting Unit / ST-99-D2



Computer control over the entire process
Automatically stop when running out of film
From film roll to final bag, one process flow
Automatically stop when color scanning misses
High production efficiency to save manpower and time
Automatically stop when film feeding blocks or bags jam
Automatic film feeding, coordination free from tension adjustment
Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed


Bag Length 350 ~ 650mm
Bag Width 160 ~ 365mm
Film Thickness 0.008 ~ 0.050mm
Production Speed 180 ~ 250 pcs / min / line
Upload Film Roll Siza Ø 900 x 480mm
Power 220V , 3 Phases , 50/60HZ , 20KVA
Heater 6KW
Dimension L x W x H 9050 x 1890 x 2115mm
Packing L x W x H machine:2270 x 2120 x 1300mm
punch:3790 x 2060 x 1650mm
unwinder:2910 x 1820 x 2400mm
Required Air Compressor 10 HP ( not included )
Weight 5700kg ( net ) / 6050kg ( gross )

* The specification are subject to be changed for improvement without notice.
