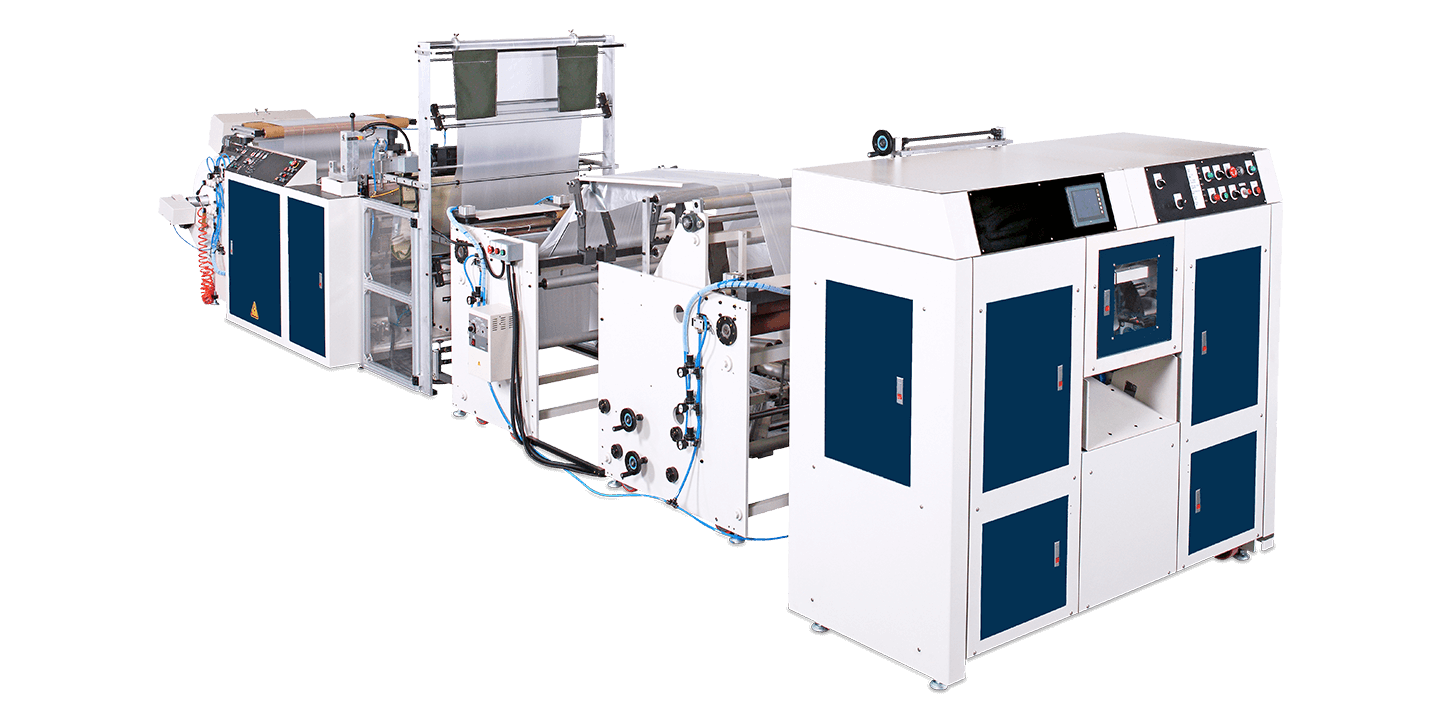

Fully Automatic High Speed Garbage Bags , Table Sheets-On-Roll Making Machine With (V , C , N , M Shape) Folding Unit(Coreless) / SMNR-1000
Specifications
MODEL | SMNR-1000 |
---|---|
Bag Length | 200 - 1500 mm |
Bag Width | 300 - 900 mm |
Film Thickness | 0.008 - 0.060 mm |
Production Speed | 60 - 100 meters / min / line (max) |
Finished Roll Size | Ø150 x 400 mm (max) |
Upload Film Roll Siza | Ø900 x 900 mm (max) |
Power | 220V,3Phases,50/60HZ,12KVA |
Heater | 2.5KW |
Dimension L x W x H | 7450 x 1820 x 1860mm |
Packing L x W x H |
machine:2760 x 1620 x 1460mm rewinder:1400 x 1820 x 1700mm folder:2100 x 1300 x 1330mm |
Required Air Compressor | 6HP (not included) |
Weight | 3900kg (net) / 4200kg (gross) |
* The specification are subject to be changed for improvement without notice.
