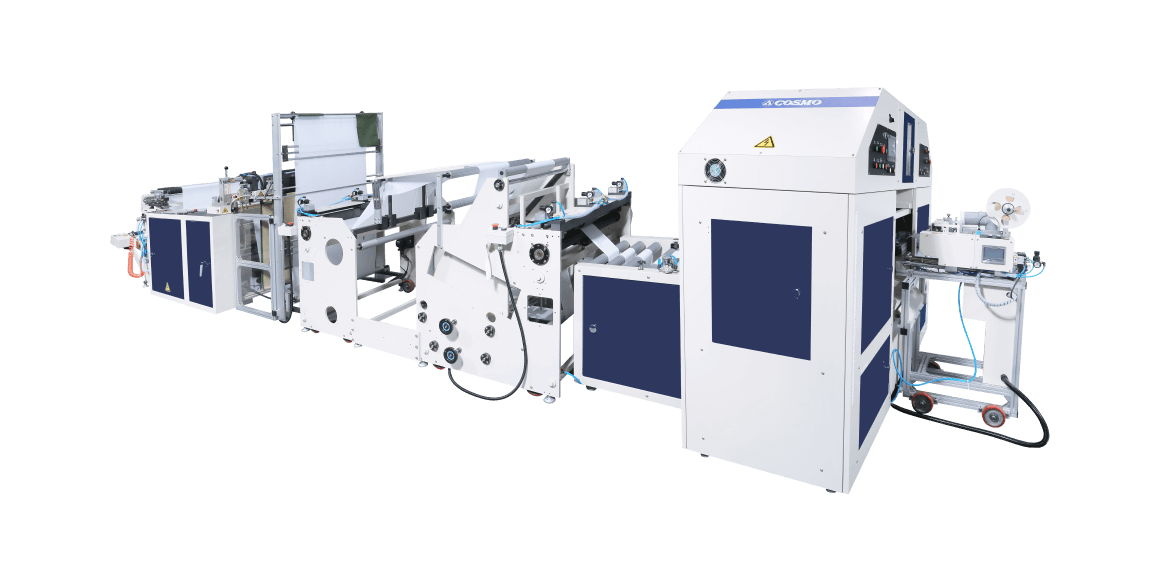

Fully Automatic High Speed Garbage Bags , Table Sheets-On-Roll Making Machine With (V , C , N , M Shape) Folding Unit(Coreless) / SMNCR-1000
BACK
Specifications
MODEL SMNCR-1000
Bag Length 200 - 1500 mm
Bag Width 300 - 900 mm
Film Thickness 0.008 - 0.060 mm
Production Speed 60 - 100 meters / min / line (max)
Finished Roll Size Ø150 x 400 mm (max)
Upload Film Roll Siza Ø900 x 900 mm (max)
Power 220V,3Phases,50/60HZ,12KVA
Heater 2.5KW
Dimension L x W x H 7450 x 1820 x 1860mm
Packing L x W x H machine:2760 x 1620 x 1460mm
rewinder:1400 x 1820 x 1700mm
folder:2100 x 1300 x 1330mm
Required Air Compressor 6HP (not included)
Weight 3900kg (net) / 4200kg (gross)

* The specification are subject to be changed for improvement without notice.
