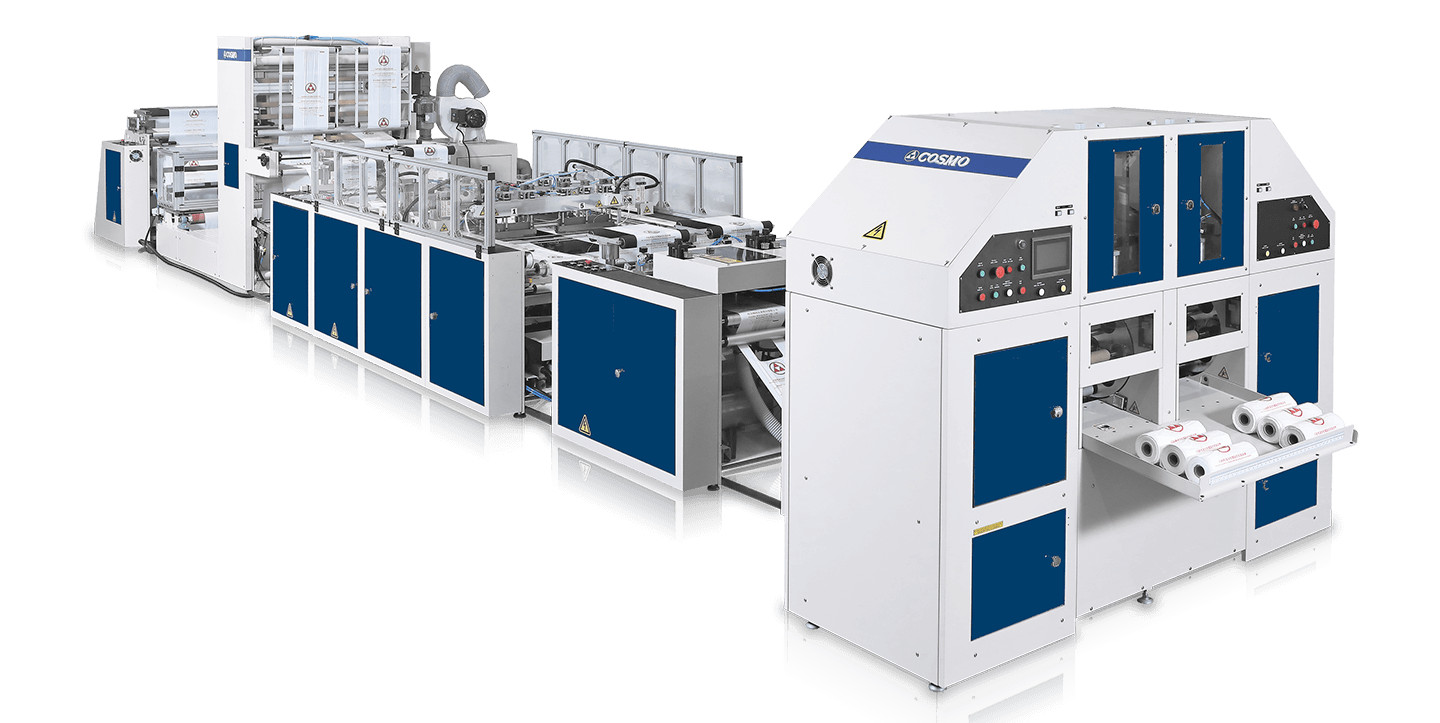

Fully Automatic High Speed 2 Lines with Core T-Shirt & Bottom Sealing Bags on Roll Making Machine with Slitting & Gusseting Unit
STBCR-40-G2+OS+2W
Features
- 2 lines T-shirt bags on roll making machine
- High production efficiency to save men power and time
- Computer control over the entire process
- From film roll to final bag, once process flow
- Servo motor, as standard attachment, makes it easy to adjust the bag length and production speed
- Automatic film feeding, coordination free from tension adjustment

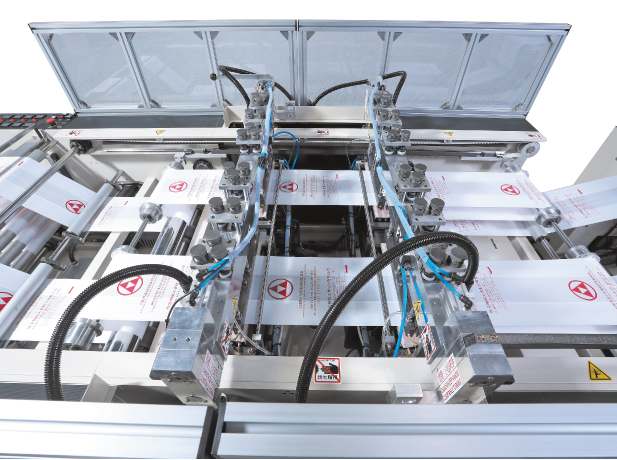

- Oscillation film feeding & sealing system for stability and high out put
-
Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
- Automatically core replacing system

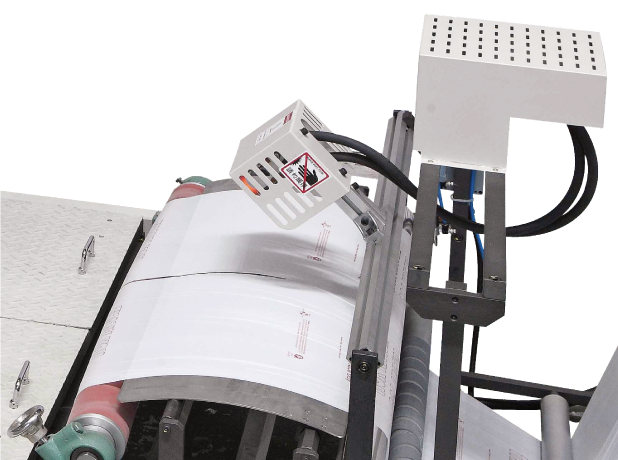

- Punching system on magnetic roller
【COSMO】T-shirt Bag on Roll Making Machine : STBCR-40-G2+OS+2W
Specifications
| MODEL | STBCR-40-G2+OS+2W |
|---|---|
| Product Size |
Length: 350 mm (min) Width: 180 - 330 mm Thickness: 0.006 - 0.035 mm Roll size: Ø 150 x 330 mm |
| Production Speed | 300 pcs / min / line (max) |
| Film Roll Size | Ø 900 x 1200 mm |
| Power | 220V, 3Phases, 30KVA |
| Heater | 7 KW |
| Dimension L x W x H | 12150 x 2400 x 2150 mm |
* The specification are subject to be changed for improvement without notice.
