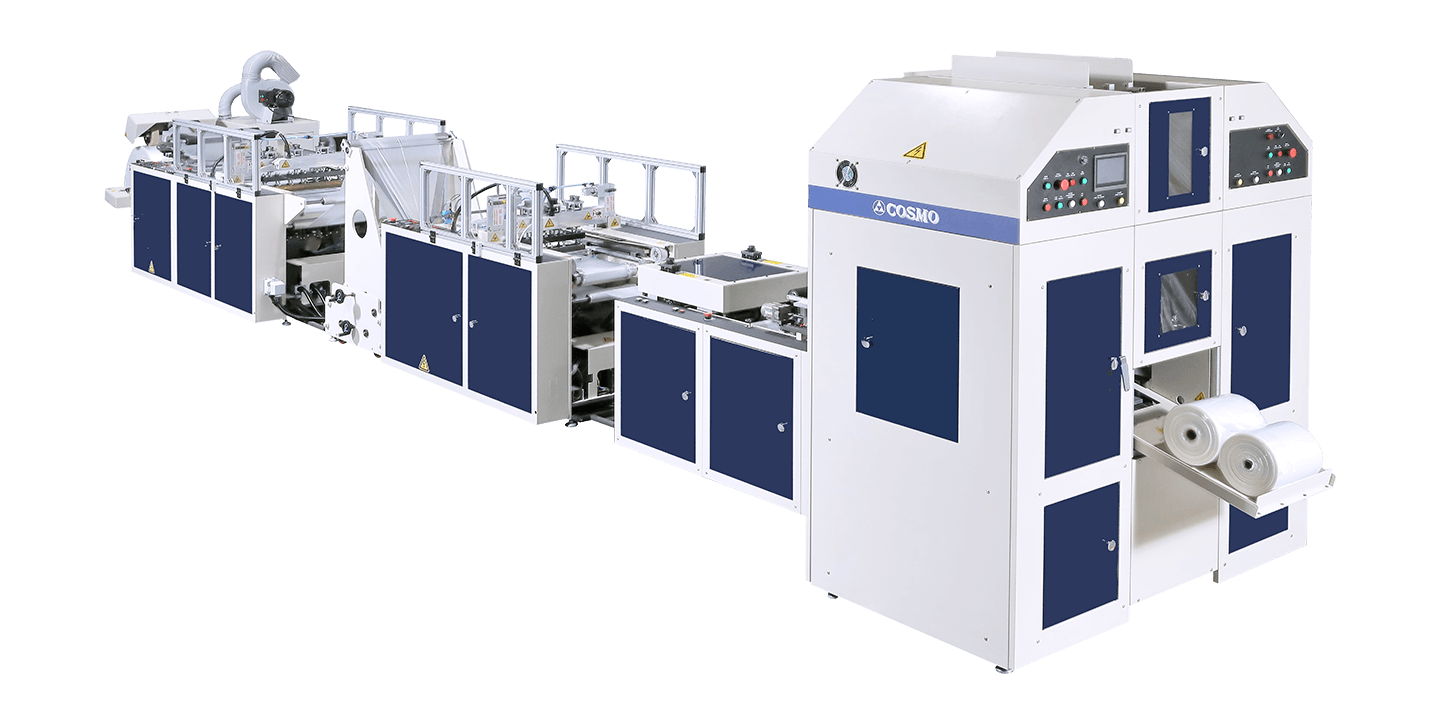

Fully Automatic High Speed Single Line with Core & Coreless T-Shirt Bag on Roll Making Machine

STRCR-50-L1

Features



  • High production efficiency to save manpower and time
  • Computer control over the entire process
  • From film roll to final bag, once process flow
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and production speed
  • Automatic film feeding, coordination free from tension adjustment
  • Oscillation film feeding system stability sealing and high out put
  • Automatic stop system on running out of film, misses color scanning and film blockage or bag jam
  • Automatically core changing system
  • Punch system on magnetic roller


Specifications



MODEL STRCR-50-L1
Bag Length 350 - 1500 mm
Bag Width 180 - 430 mm
Film Thickness 0.008 - 0.035 mm / layer
Production Speed 150 pcs / min / line (max)
Finished Roll Size Ø 180 x 430 mm (max)
Upload Film Roll Siza Ø 900 x 430 mm (max) (bottom seal)
Ø 900 x 650 mm (max) (star seal)
Core Size Ø 25 - 75 mm , thickness 3 mm (min)
Power 220V, 3Phases, 50/60HZ, 35KVA
Heater 8 KW
Dimension L x W x H 7750 x 3000 x 1580 mm
Required Air Compressor 10HP (not included)




* The specification are subject to be changed for improvement without notice.
