Fully Automatic High Speed 3 Types Disposable Plastic Glove Making Machine

SSD-800-HGL

Fully Automatic High Speed 3 Types Disposable Plastic Glove Making Machine

Features



  • Computer control over the entire process
  • Jumbo film roll to final product(2 line output) , one process flow
  • Automatically stop when running out of film/ film feeding blocks or jam
  • Automatically tear off the waste edge film
  • Melting cut-off(no cutting knife) system save time and manpower on adjusting knife
  • Capable to produce 3 types in same machine


【COSMO】 Gloves Making Machine : SSD-800-HGL (Standard)

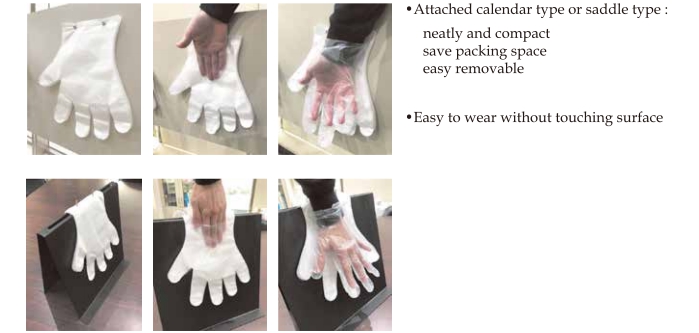

【COSMO】 Gloves Making Machine : SSD-800-HGL (Calendar)



【COSMO】 Gloves Making Machine : SSD-800-HGL (Saddle)



Specifications



MODEL SSD - 800 - HGL
Production Size Length : 350 mm (max)
Width : 350 mm (max)
Thickness : 10 ~ 25 um
Power 220V, 3 Phases, 50/60 HZ, 20 KVA
Production Speed 150 pcs / min x 2 line
Heater 9 KW
Film Roll Size Ø 1000 x 720 mm
Dimension (L x W x H) 8500 x 1700 x 1800 mm
Air Compressor 6 HP ( not included )



* The specification are subject to be changed for improvement without notice.
