Fully Automatic High Speed 2 Lines Core & Coreless Bag on Roll Making Machine
SRCR-40 / SRCR-50
Features
- Computer control over the entire process
- Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
- Automatic film feeding, coordination free from tension adjustment
- Automatically stop when running out of film
- Automatically stop when film feeding blocks or bags jam
- Automatically stop when color scanning misses
- High production efficiency to save manpower and time
- Aotumcatically core replacing system

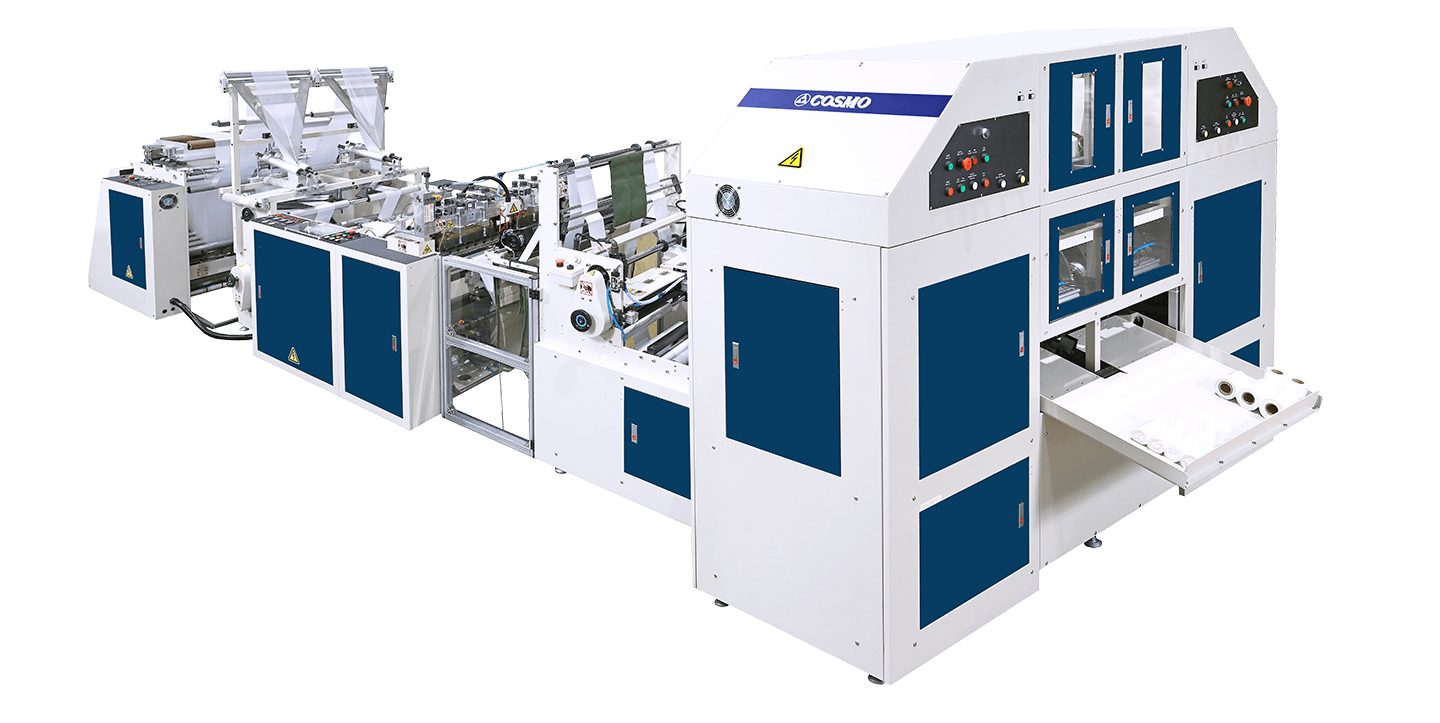

【COSMO】Fully Automatic High Speed 2 Lines ｗith Core & Coreless Bag on Roll Making Machine：SRCR-40
Specifications
| MODEL | SRCR-40 | SRCR-50 |
|---|---|---|
| Bag Length |
250 ~ 1500 mm (core-less) |
250 ~ 1500 mm (core-less) 150 ~ 750 mm (core) |
|
Bag Width |
100 ~ 330 mm (core-less) 150 ~ 350 mm (core) |
100 ~ 330 mm (core-less) 150 ~ 400 mm (core) |
|
Film Thickness |
0.008 ~ 0.035 mm / layer |
0.008 ~ 0.035 mm / layer |
|
Finished Roll size |
Ø150 x 330 mm (core-less) Ø150 x 350 mm (core) |
Ø150 x 330 mm (core-less) Ø150 x 430 mm (core) |
| Production Speed | 100 meter / min / line | 100 meter / min / line |
| Upload Film Roll Size |
Ø900 x 550 mm (star sealing) |
Ø900 x 660 mm (star sealing) |
| Power | 220V, 3 Phases, 50/60HZ, 20KVA | 220V, 3 Phases, 50/60HZ, 20KVA |
| Heater | 3.5KW | 3.5KW |
| Dimension L x W x H | 5800 x 2750 x 1950 mm | 5800 x 3200 x 1950 mm |
| Required Air Compressor | 10HP (not included) | 10HP (not included) |
* The specification are subject to be changed for improvement without notice.
