Fully Automatic High Speed 2 Lines with Core T-Shirt & Bottom Seal Bag on Roll Making Machine

STBCR-40+OS

Fully Automatic High Speed 2 Lines with Core T-Shirt & Bottom Seal Bag on Roll Making Machine

Features



  • High production efficiency to save manpower and time
  • Computer control over the entire process
  • From film roll to final bag, once process flow
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and production speed
  • Automatic film feeding, coordination free from tension adjustment
  • Oscillation film feeding system stability sealing and high out put
  • Automatic stop system on running out of film, misses color scanning and film blockage or bag jam
  • Automatically core changing system
  • Punch system on magnetic roller


【COSMO】T-shirt Bag on Roll Making Machine:STBCR-40+OS



Specifications



MODEL STBCR-40+OS
Power 220V, 3phases, 50/60hz, 25KVA
Heater 7 KW
Bag length 350 mm (min)
Bag width 180 ~ 330 mm
Film Thickness 0.006 ~ 0.035 mm / layer
Production Speed 200 pcs / min / line (max)
Finished Roll Size Ø 180×330 mm (max)
Film Roll (max, dia.) Ø 900 × 330 mm (max) (bottom seal)
Core Size Ø 25 ~ 75 mm, thickness 3 mm (min)
Dimensions (L x W x H) 8000 x 2400 x 1940 mm
Packing (L x W x H) Machine : 3440 x 1700 x 1580 mm
Rewinder : 2000 x 2460 x 1880 mm
Required Air Compressor 6 HP (not included)
Weight 4800kg (net) / 5000kg (gross)


* The specification are subject to be changed for improvement without notice.

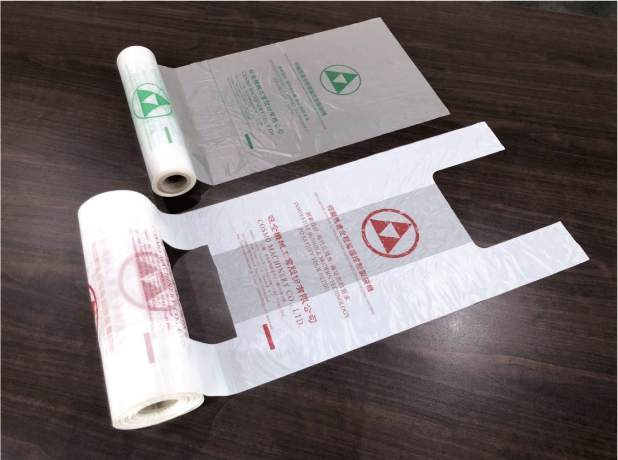

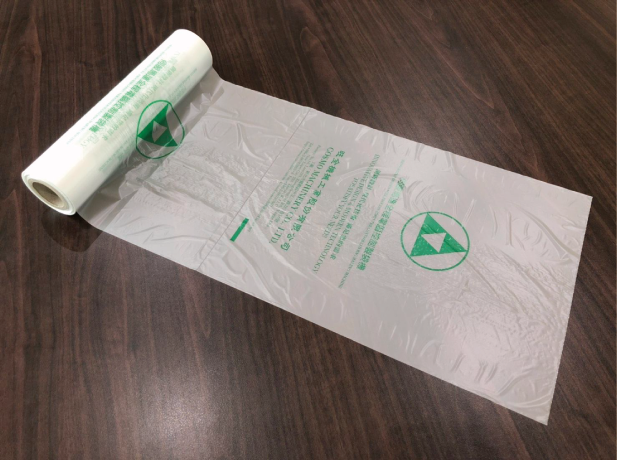

Applications
