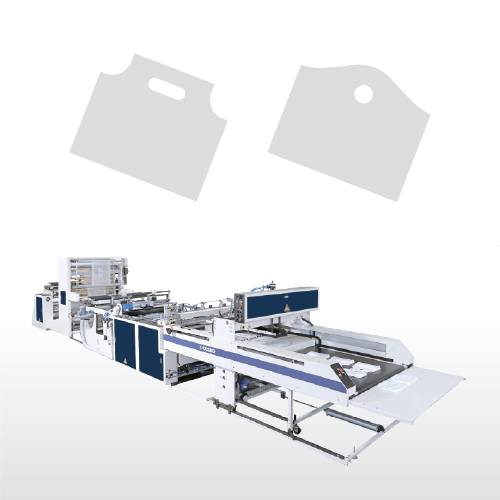

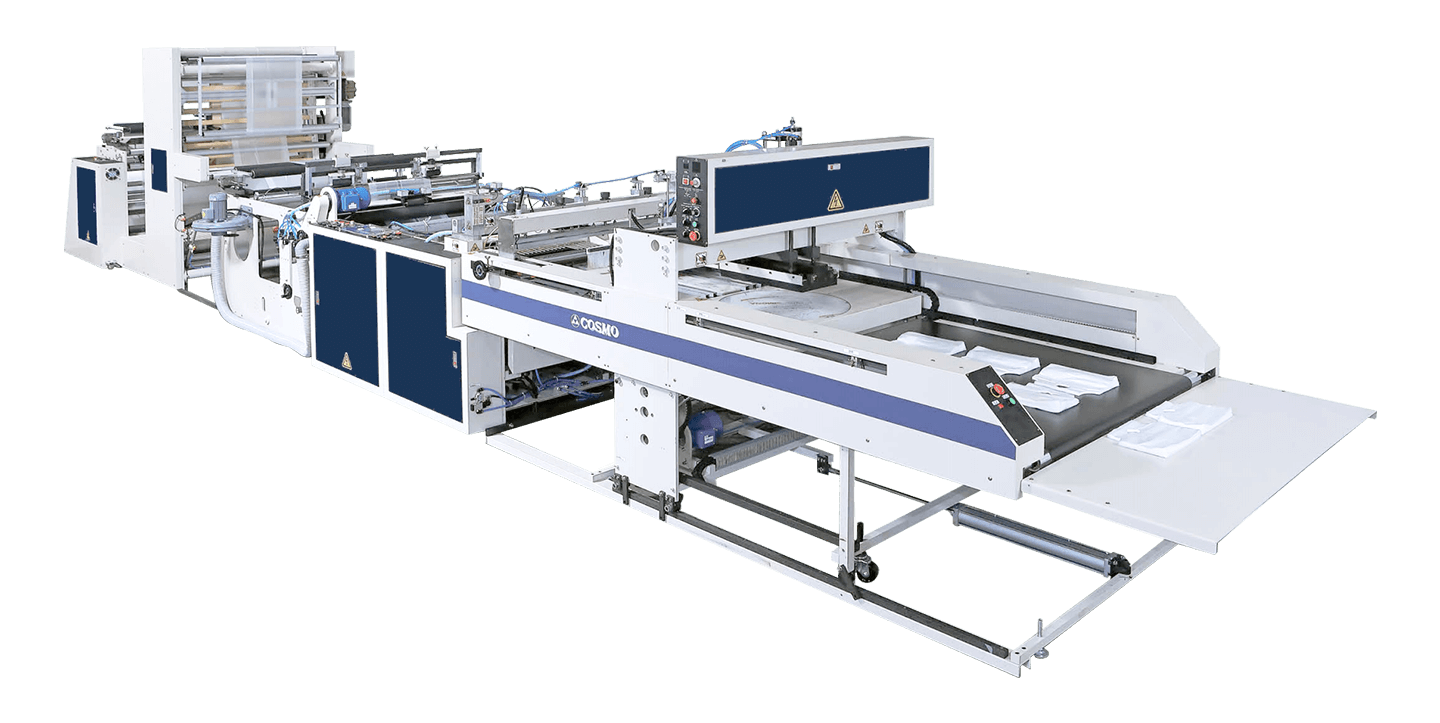

Filly Automatic Side Sealed Plastic Beverage cup carrier & Carry out (wave top) Bag_Making_Machine / SSD-1100-GS-L1
BACK
Features
High production efficiency to save men power and time
Computer control over the entire process
From film roll to final bag, once process flow
Servo motor & Driver, as standard attachment, easy adjustment over production speed & bag length
Automatic stop over film running out or Bag jammed
Automatically stop over misses color scanning
Autimatic film feeding, coordination free from tension adjustment
Single output and 2 lines output punching unit
Specifications
MODEL SSD-1100-GS-L1
Power 220V, 3 phases, 15KVA
Heater 4KW
Bag length 400~1000 mm
Bag width 150~900 mm
Film Thickness 0.008~0.035 mm
Production Speed 100~200 pcs / min
Film Roll Size
(loading)

1000×Ø900 mm

Max bottom gusset 80 mm (Max)
Dimensions
(L x W x H)

10650 x 1850 x 12120 mm
Air Compressor 6HP (not included)

* The specification are subject to be changed for improvement without notice.
