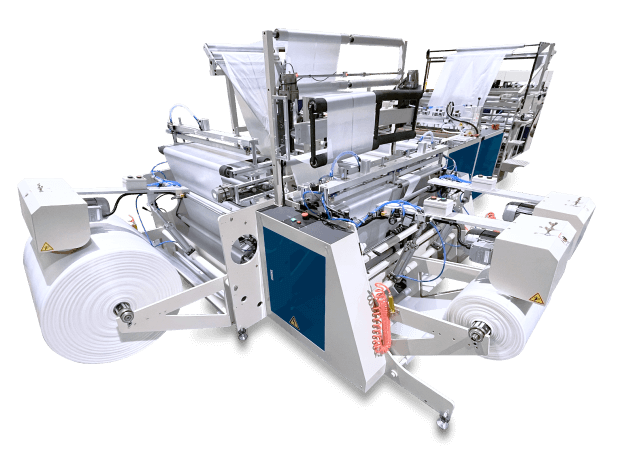

Two Functioned Single line & Two lines Core-less Garbage Bags-on-Roll Making Machine
SR(2)MR(1)-1000-OS-2T-R4S
Features
- Flexible production with star sealing and bottom sealing.
- Shuttle system & 4 shafts re-wind system for stability and high out put.
- Servo driven system for high production capacity.
- From film roll to finished bag roll, computer control over the entire process.
-
It's easy to adjust the bag length, film tension, and production speed on touch screen.
- Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed.
- Auto reel changing device and bag pull off device on re-winder.
- Automatically stop on miss-color scanning / film breaking / running out of film.
Specifications
| MODEL | SR(2)MR(1)-1000-OS-2T-R4S |
|---|---|
| Bag Length | 350 - 1500 mm |
| Finished Product |
Ø150 x 600 mm (single line) Ø150 x 250 mm (2 lines) |
| Film Thickness |
0.008 - 0.060 mm / layer (bottom seal) 0.008 - 0.035 mm / layer (star seal) |
| Film Roll Size |
Ø1000 x 900 mm (single roll for bottom sealing) Ø1000 x 500 mm (2 rolls for star sealing) |
| Production Speed | 150 meter / min / line (max) |
| Power | 220V, 3Phases, 50/60HZ, 30KVA |
| Heater | 6.2 KW |
| Required Air Compressor | 6HP (not included) |
| Dimension | L10000 x W2600 x H2500 mm |
* The specification are subject to be changed for improvement without notice.

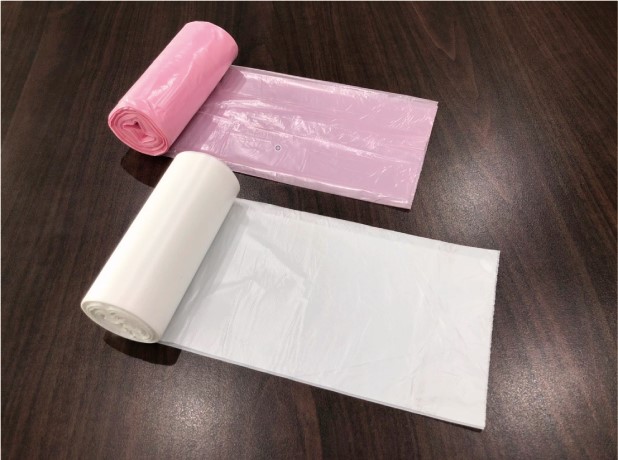

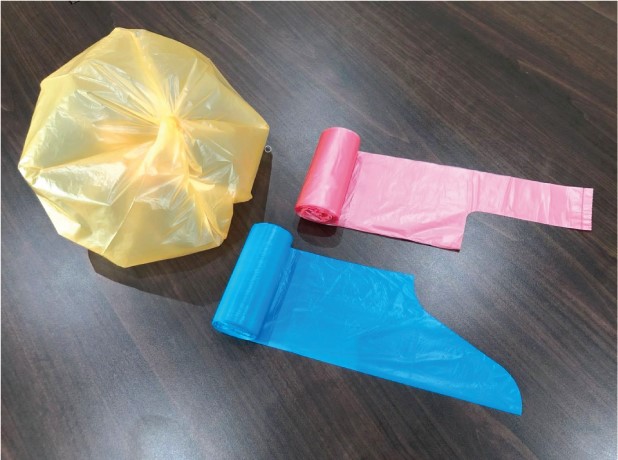

Applications
