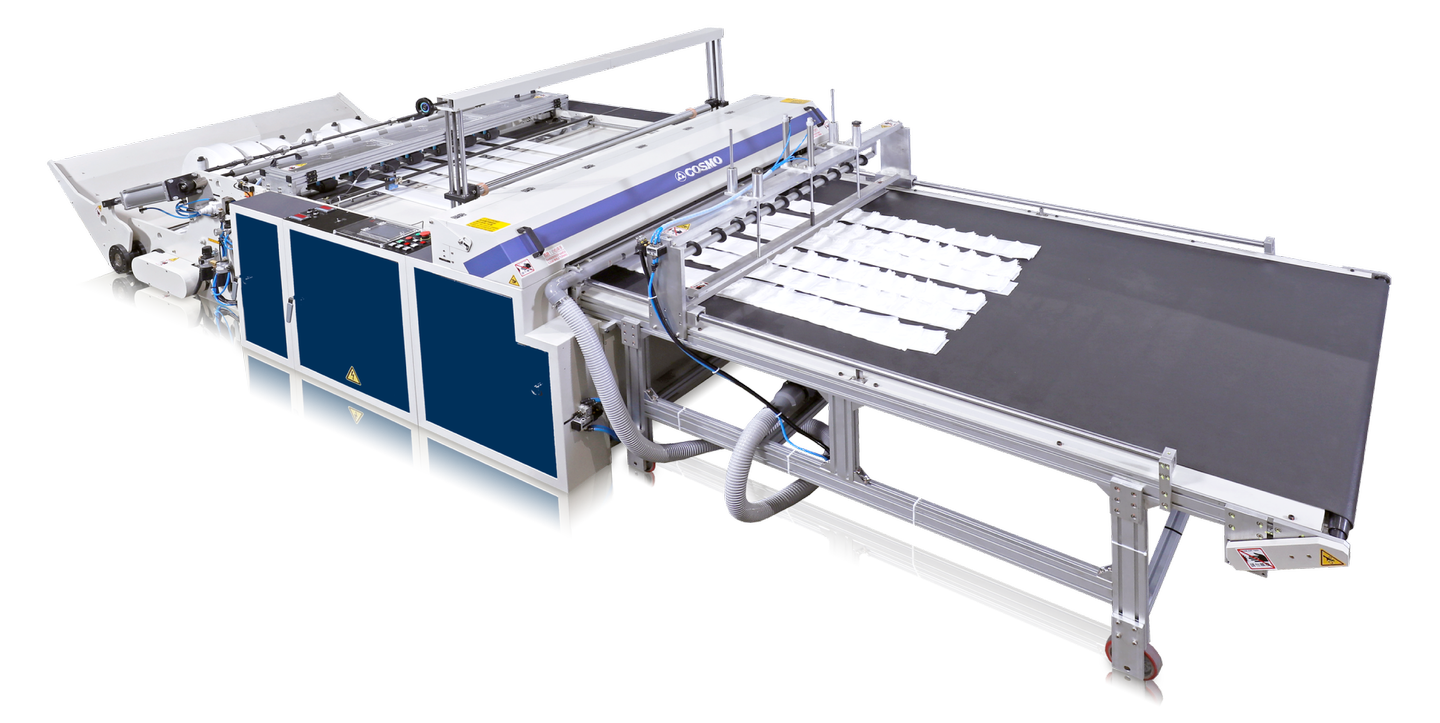

Bottom Sealing Bag Making Machine
SF-1500
Features
- Bottom sealing garbage bags / industrial bags.
- Jumbo roll/ multi rolls available.
- With flying knife cutting system.
- High production efficiency to save manpower and time.
- From film roll to final bag, one process flow.
-
It's easy to adjust the bag length, production speed, pcs per stack on the interface.
- Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment.
- Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses.
【COSMO】Bottom Sealing Bag Making Machine with Flying Knife Cutting System (several films)：SF-1500
Specifications
| MODEL | SF-1500 |
|---|---|
| Bag Length | 200 - 2500 mm |
| Bag Width | 150 - 1400 mm |
| Film Thickness / Layer | 0.012 - 0.020 mm |
| Production Speed | 15 - 60 pcs / min / line |
| Upload Film Roll Dia | Ø 1000 x 1400 mm |
| Power | 220V, 3Phases, 50/60HZ, 30KVA |
| Heater | 1.0 KW |
| Dimension L x W x H | 7000 x 2200 x 1800 mm |
| Required Air Compressor | 5HP (not included) |
* The specification are subject to be changed for improvement without notice.
