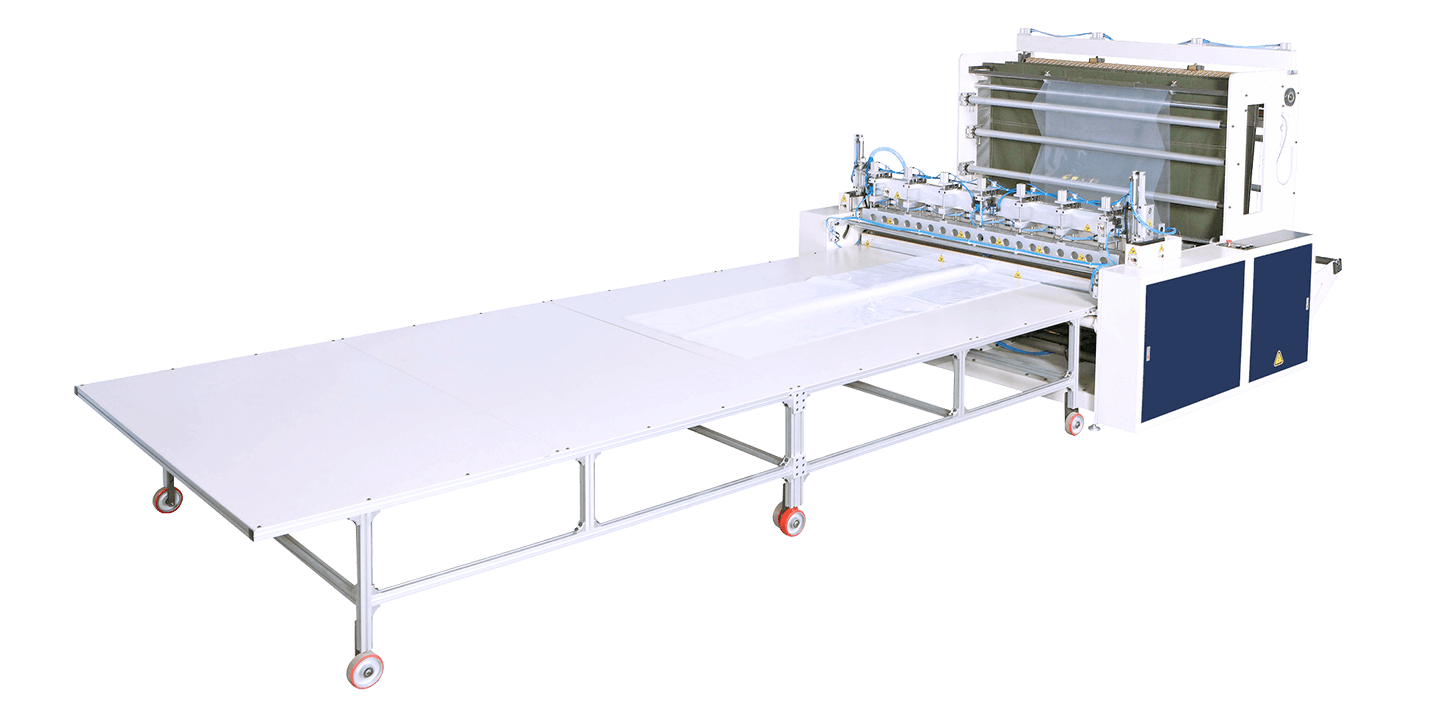

Fully Automatic Bottom Seal Industrial Bag Making Machine with Flying Knife Cutting Device

SF-80

Fully Automatic Bottom Seal Industrial Bag Making Machine with Flying Knife Cutting Device

Features



【COSMO】Bottom Sealing Bag Making Machine with Flying Knife Cutting System (several films):SF-1500



Specifications



MODEL SF-80
Bag Length 500 - 4000 mm
Bag Width 300 - 1900 mm
Film Thickness / Layer 0.010 - 0.020 mm
Production Speed 15 - 60 pcs / min / line
Upload Film Roll Dia Ø 900 x 1900 mm
Power 220V, 3Phases, 50/60HZ, 10KVA
Heater 1.0 KW
Dimension L x W x H 4800 x 2250 x 1190 mm
Required Air Compressor 5HP (not included)
Weight 3000kg (net) / 3300kg (gross)


* The specification are subject to be changed for improvement without notice.
