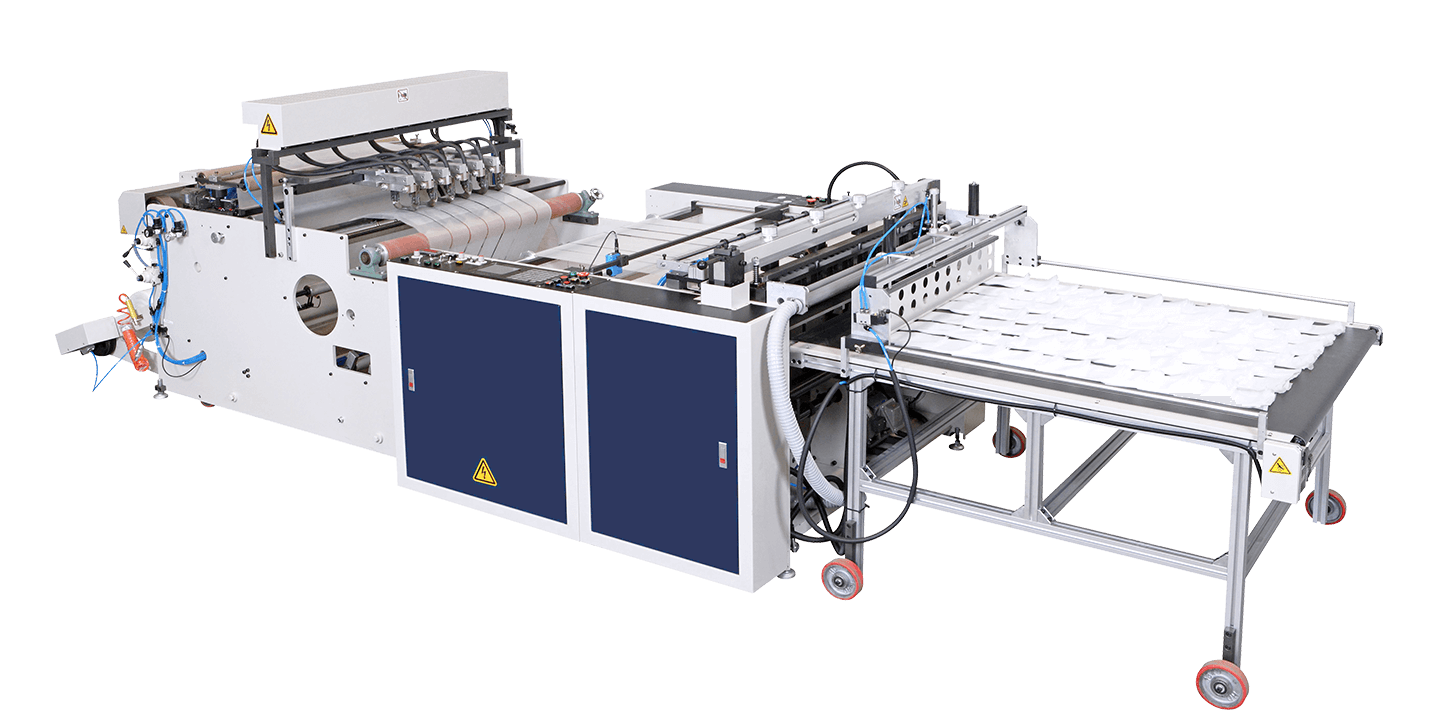

Fully Automatic Bottom Seal Bags Making Machine With Hot-Slittings System / SE-40S / SE-50S
BACK
Specifications
MODEL SE-40S
Bag Length 100 - 1500 mm
Bag Width 150 - 1000 mm
Film Thickness / Layer 0.012 - 0.060 mm
Production Speed 30 - 130 pcs / min / line
Upload Film Roll Dia Ø90 x 1000 mm
Power 220V,3Phases,50/60HZ,12KVA
Heater 3.0KW
Dimension L x W x H 5300 x 1830 x 1200mm
Packing L x W x H 5450 x 1980 x 1260mm
Required Air Compressor 5HP (not included)
Weight 1450kg (net) / 1650kg (gross)

MODEL SE-50S
Bag Length 100 - 1500 mm
Bag Width 150 - 1200 mm
Film Thickness / Layer 0.012 - 0.060 mm
Production Speed 30 - 130 pcs / min / line
Upload Film Roll Dia Ø90 x 1200 mm
Power 220V,3Phases,50/60HZ,12KVA
Heater 3.0KW
Dimension L x W x H 5300 x 2030 x 1200mm
Packing L x W x H 5450 x 2180 x 1260mm
Required Air Compressor 5HP (not included)
Weight 1450kg (net) / 1650kg (gross)

* The specification are subject to be changed for improvement without notice.
