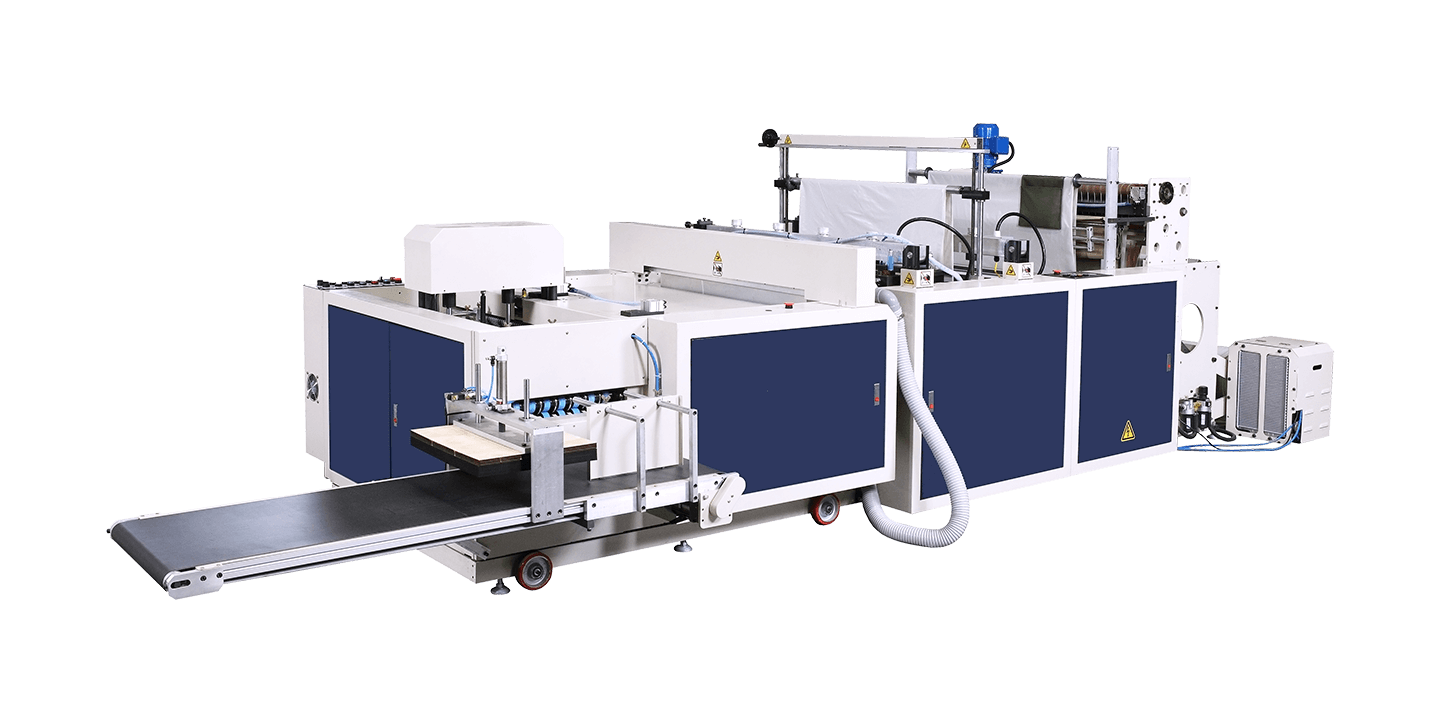

Fully Automatic Bottom Seal 3 Fold Garbage Bags Making Machine / SE-40-3F / SE-40-4F / SE-50-3F / SE-50-4F
BACK
Specifications
MODEL SE-40F
Bag Length 650 - 1400 mm
Bag Width 350 - 810 mm
Film Thickness / Layer 0.012 - 0.035 mm
Production Speed 30 - 80 pcs / min / line
Upload Film Roll Dia Ø900 x 810 mm
Power 220V,3Phases,50/60HZ,15KVA
Heater 3.4KW
Dimension L x W x H 5570 x 2150 x 1830mm
Packing L x W x H machine:3900x1850x1850mm
folder:1780x1510x1060mm
Required Air Compressor 3HP (not included)
Weight 3000kg (net) / 3500kg (gross)

MODEL SE-50F
Bag Length 650 - 1400 mm
Bag Width 350 - 1000 mm
Film Thickness / Layer 0.012 - 0.035 mm
Production Speed 30 - 80 pcs / min / line
Upload Film Roll Dia Ø900 x 1000 mm
Power 220V,3Phases,50/60HZ,15KVA
Heater 3.4KW
Dimension L x W x H 5570 x 2480 x 1830mm
Packing L x W x H machine:3900x2100x1850mm
folder:1780x1710x1060mm
Required Air Compressor 3HP (not included)
Weight 3000kg (net) / 3500kg (gross)

* The specification are subject to be changed for improvement without notice.
