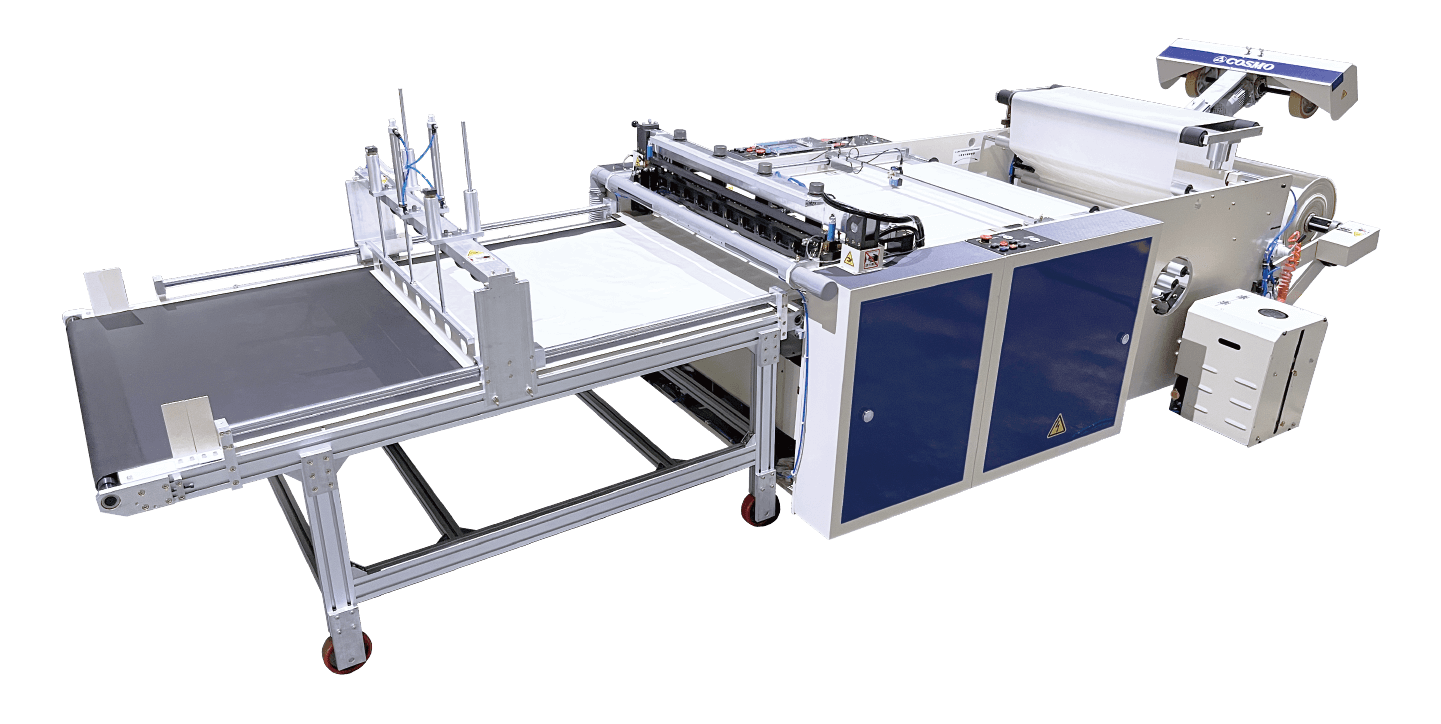

Fully Automatic Bottom Sealing Industrial and Garbage Bag Making Machine
SE-1000 / SE-1200 / SE-1500
Features
-
Wire heating and cold blade cutting system
- Computer control over the entire process
- From film roll to final bag, one process flow
- Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
- Automatic film feeding, coordination free from tension adjustment
- Automatically stop when running out of film
- Automatically stop when film feeding blocks or bags jam
- Automatically stop when color scanning misses
- High production efficiency to save manpower and time
【COSMO】Bottom Sealing Bag Making Machine：SE-1000
Specifications
| MODEL | SE-1000 | SE-1200 |
|---|---|---|
| Bag Length | 100 - 1500 mm | 100 - 2000 mm |
| Bag Width | 200 - 1000 mm | 200 - 1200 mm |
| Film Thickness / Layer | 0.010 - 0.20 mm | 0.010 - 0.20 mm |
| Production Speed | 20 - 90 pcs / min / line | 20 - 90 pcs / min / line |
| Upload Film Roll Dia | Ø 900 x 1000 mm | Ø 900 x 1200 mm |
| Power | 220V, 3Phases, 50/60HZ, 10KVA | 220V, 3Phases, 50/60HZ, 10KVA |
| Heater | 1.0 KW | 1.0 KW |
| Dimension L x W x H | 4410 x 1720 x 1130 mm | 4410 x 1870 x 1130 mm |
| Packing L x W x H | 4550 x 1870 x 1210 mm | 4550 x 2020 x 1210 mm |
| Required Air Compressor | 5HP (not included) | 5HP (not included) |
| Weight | 2200kg (net) / 2400kg (gross) | 2200kg (net) / 2400kg (gross) |
* The specification are subject to be changed for improvement without notice.
