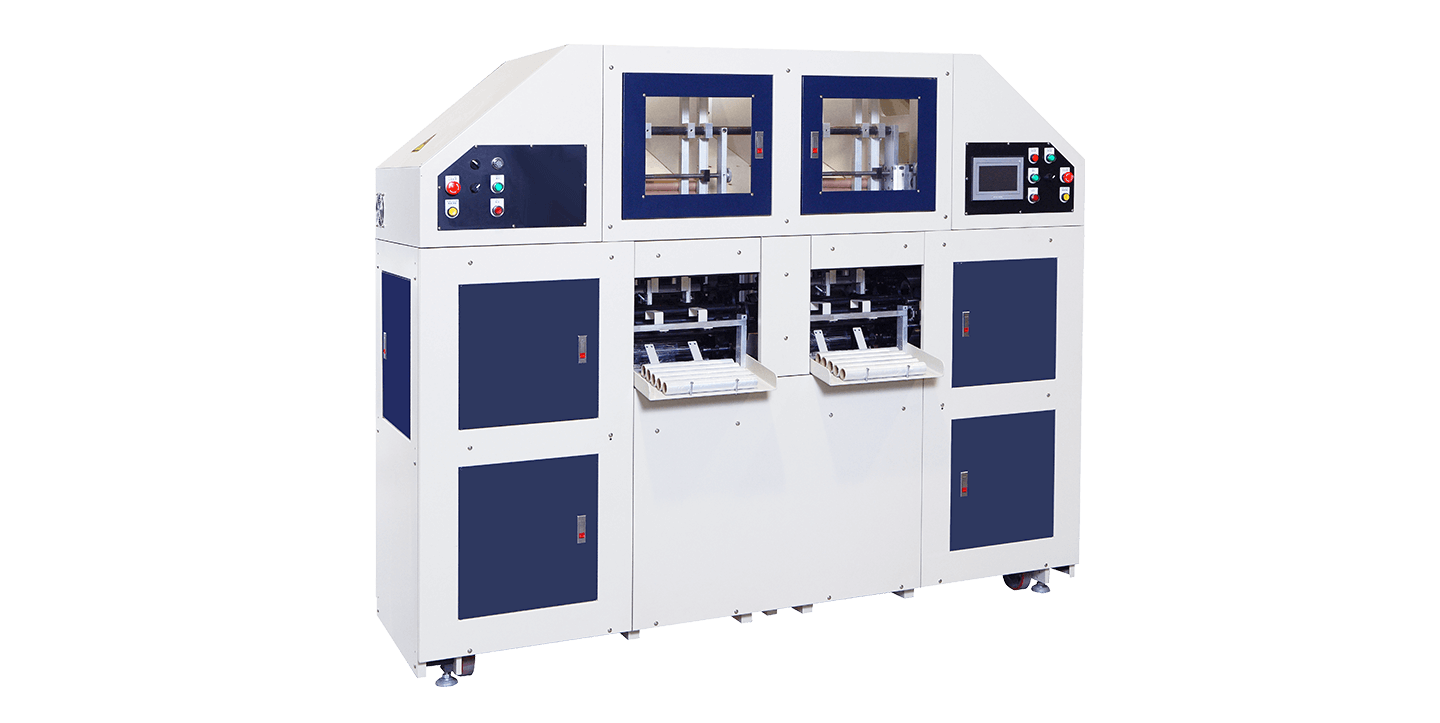

Fully Automatic High Speed 4 Spindles 2 Lines Stretch Film Rewinder (Kitchen Type)

SWCR-350-L2

Fully Automatic High Speed 4 Spindles 2 Lines Stretch Film Rewinder (Kitchen Type)

Specifications



MODEL SWCR-350-L2
Finished Roll Dia Ø 100 mm
Available Mother Roll Width 150 mm - 300 mm x Ø750 (max)
Material Thickenss 0.010 - 0.018 mm
Finished Product Core Dia (outter) Ø 25 - 50 mm
Max Product speed 500 meter / min / line
Dimension L x W x H 2320 x 1450 x 1950 mm
Production Piece 20 meter 10 pcs / min / line
30 meter 8 pcs / min / line
60 meter 5 pcs / min / line
Power 220V, 3Phases, 50/60HZ, 10KVA
Weight 1500 kg(net) / 1600 kg(gross)
Required Air Compressor 3HP (not included)


* The specification are subject to be changed for improvement without notice.
