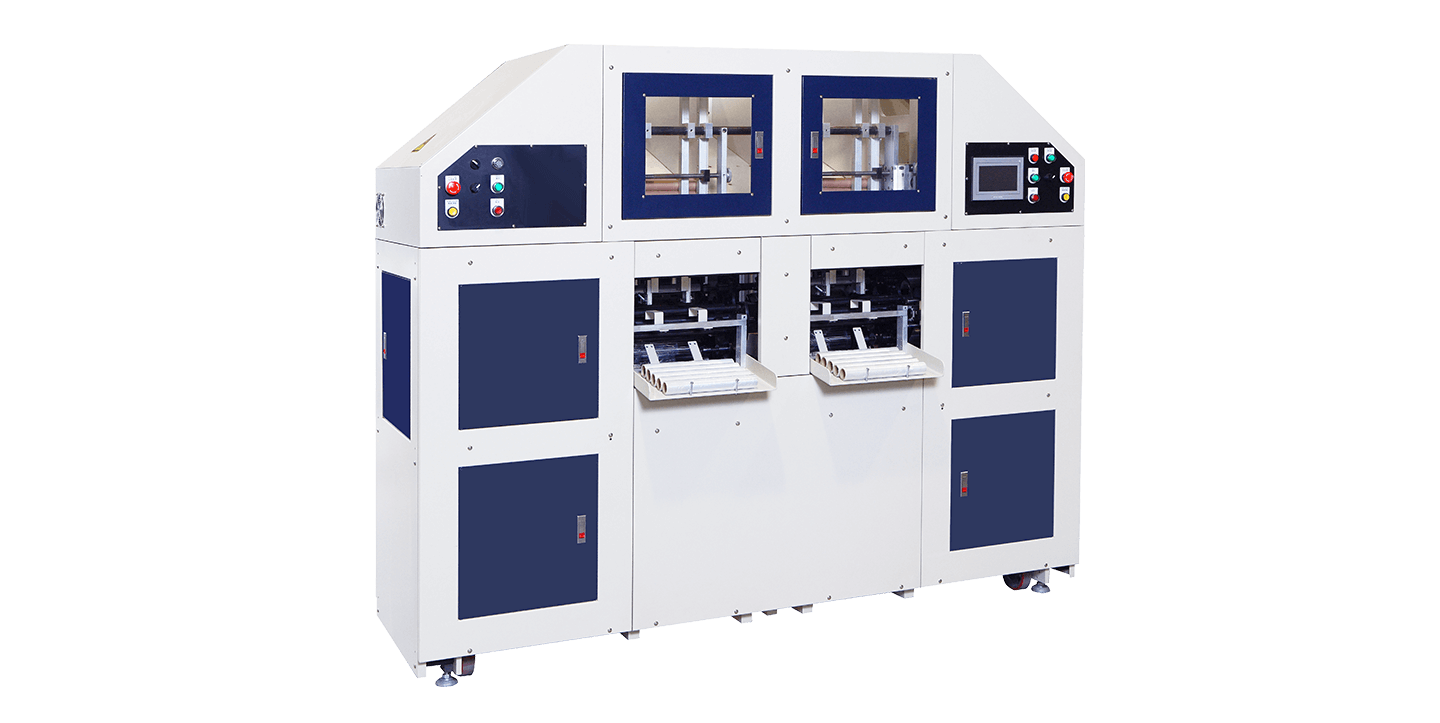

Fully Automatic High Speed 4 Spindles 2 Lines Perforation Stretch Film Rewinder (Kitchen Type)
SWCR-350-L2+P
Specifications
| MODEL | SWCR-350-L2+P |
|---|---|
| Finished Roll Dia | Ø 100 mm |
| Available Mother Roll Width | 150 mm - 300 mm x Ø 750 (max) |
| Material Thickenss | 0.010 - 0.018 mm |
| Finished Product Core Dia (outter) | Ø 25 - 50 mm |
| Max Product speed | 500 meter / min / line |
| Dimension L x W x H | 2320 x 1450 x 1950 mm |
| Production Piece |
20 meter 10 pcs / min / line 30 meter 8 pcs / min / line 60 meter 5 pcs / min / line |
| Power | 220V, 3Phases, 50/60HZ, 10KVA |
| Weight | 1500 kg(net) / 1600 kg(gross) |
| Required Air Compressor | 3HP (not included) |
* The specification are subject to be changed for improvement without notice.
