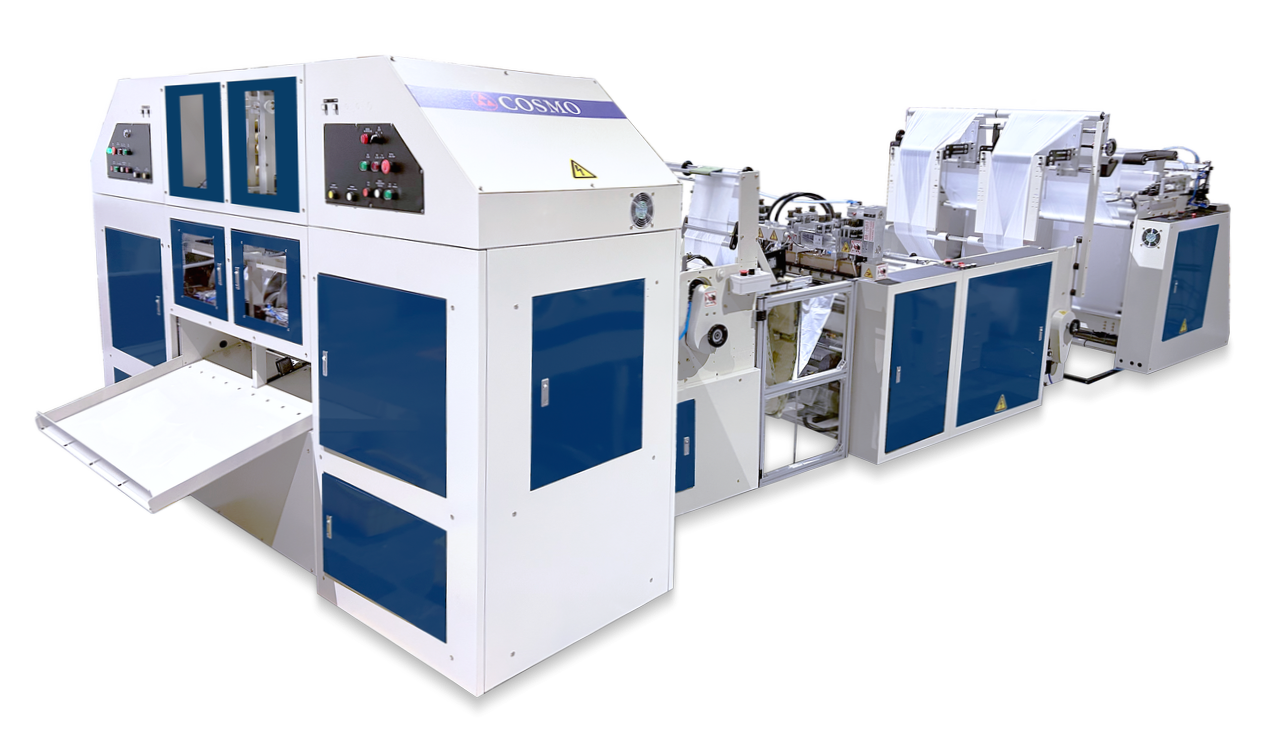

全自動高速雙線有芯＆無芯捲取桌巾製袋機

SRCR(CF)-40 / SRCR(CF)-50

Servo driven system for high production capacity.
From film roll to finished roll, computer control over the entire process.
It's easy to adjust the bag length and production speed on touch screen.
Automatic film feeding, coordination free from tension adjustment.
Automatically reel changing system / core replacing system.
Automatically stop when Miss-color scanning / lacking of film / running out of film / film blocked.
Core & coreless converting.
Equipped with C-fold device.
Equipped with Mid-cutting open device.

MODEL	SRCR(CF)-40	SRCR(CF)-50
Bag Length	250 ~ 1500 mm	250 ~1500 mm
Bag Width	100 ~ 330 mm (coreless) 150 ~ 350 mm (core)	100 ~ 430 mm (coreless) 150 ~ 450 mm (core)
Film Thickness	0.008 ~ 0.060 mm / layer	0.008 ~ 0.060 / layer
Finished Roll Size	Ø150 x 330 mm (coreless) Ø150 x 350 mm (core)	Ø150 x 330 mm (coreless) Ø150 x 350 mm (core)
Core Size	Ø25 ~75 mm, thickness 2.5mm (min)	Ø25 ~75 mm, thickness 2.5mm (min)
Production Speed	100 meter / min / line	100 meter / min / line
Upload Film Roll Size	Ø900 x 500 mm (sufra/table cover) Ø900 x 350 mm (bottom sealing)	Ø900 x 600 mm (sufra/table cover) Ø900 x 450 mm (bottom sealing)
Power	220V, 3 Phases, 50/60HZ, 20KVA	220V, 3 Phases, 50/60HZ, 20KVA
Heater	3.5KW	3.5KW
Dimension L x W x H	7750 x 2750 x 1950 mm	7750 x 3200 x 1950 mm
Required Air Compressor	10HP (not included)	10HP (not included)

* 規格如有變更改進，恕不另行通知。
